micro-UAV range for Public Safety, Government, and Defense
Parrot ANAFI UKR
Designed to meet the operational demands of both frontline defense missions and public safety deployments, the ANAFI UKR range combines tactical-grade resilience with embedded autonomy in a compact, easily deployable format.
Watch Video
Key Features
- Sensor: FLIR BOSON – Resolution: 640 x 512 px
- Satellite navigation: GPS, GLONASS, Galileo & BeiDou
- Sound power level at 1 m (3 ft): 77 dBA
- Service ceiling: 5,000 m above MSL (Mean Sea Level)
- Zero data shared without user consent
- Flight Planning with waypoints and points of interest
- Opitcal Navigation
- Native Mapping missions within FreeFlight 8
- 38 Minute Battery Life
Key Features
The combination of endurance, robustness and discretion allows ANAFI UKR micro-UAVs to operate where larger systems cannot, in urban environments, hostile terrain or low-profile missions requiring mobility, flexibility, and sovereign command of data and airspace.
Purpose-built for mission-complex environments, the ANAFI UKR is designed to operate effectively under perilous conditions, featuring resilience against jamming and spoofing through encrypted communications via MARS Radio, LoRa, 5G, and Wi-Fi.
The smart, rugged, ISR micro-UAV range for Defense, Public Safety and Government operations
From defending freedom to domestic missions: a tactical-grade, AI- powered micro-UAV range designed for GNSS-denied environments, hardened against contested electromagnetic environments, and engineered for sovereign control
Mission-ready for real-world operations
Designed to meet the operational demands of both frontline defense missions and public safety deployments, the ANAFI UKR range combines tactical-grade resilience with embedded autonomy in a compact, easily deployable format.
Developed from direct field feedback, ANAFI UKR (defense version) and ANAFI UKR GOV (public safety version) are engineered for mission-critical environments where GNSS may be denied, infrastructure is compromised, and the pace of action leaves no room for delay.
- Reconnaissance and tactical overwatch for defense or homeland security missions;
- Crowd monitoring and situational awareness during public order and police operations;
- Support to suspect location and tracking in urban, rural or confined environments;
- Aerial assistance to criminal investigations and special operations;
- Border surveillance and customs enforcement across national frontiers;
- Perimeter monitoring and intruder detection around sensitive infrastructure;
- Routine inspection and securization of government or strategic facilities;
- Search & Rescue in GNSS-denied environments (collapsed buildings, forests, mountain rescue);
- Rapid threat assessment during fires, chemical spills or industrial incidents.
Whether deployed to defend national sovereignty or in the context of civil protection, ANAFI UKR variants provide real-time visual intelligence, tactical flexibility, and sovereign data control, at the speed of field operations.
Get in Touch With An Expert

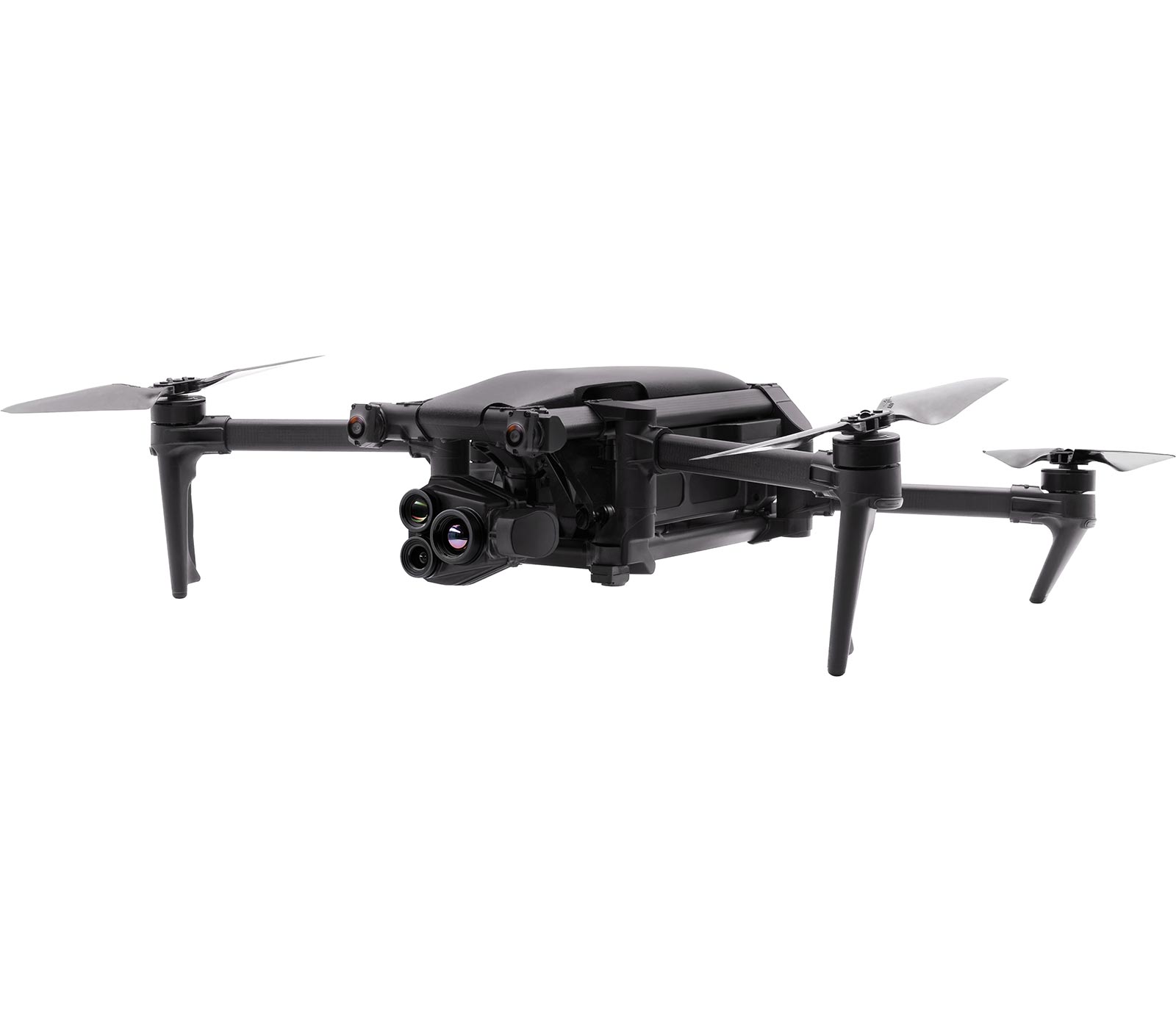

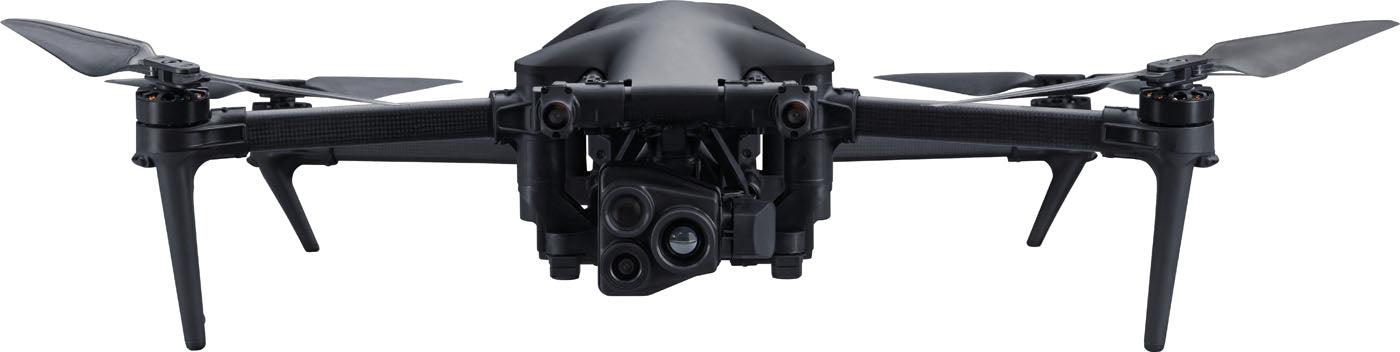

Aircraft

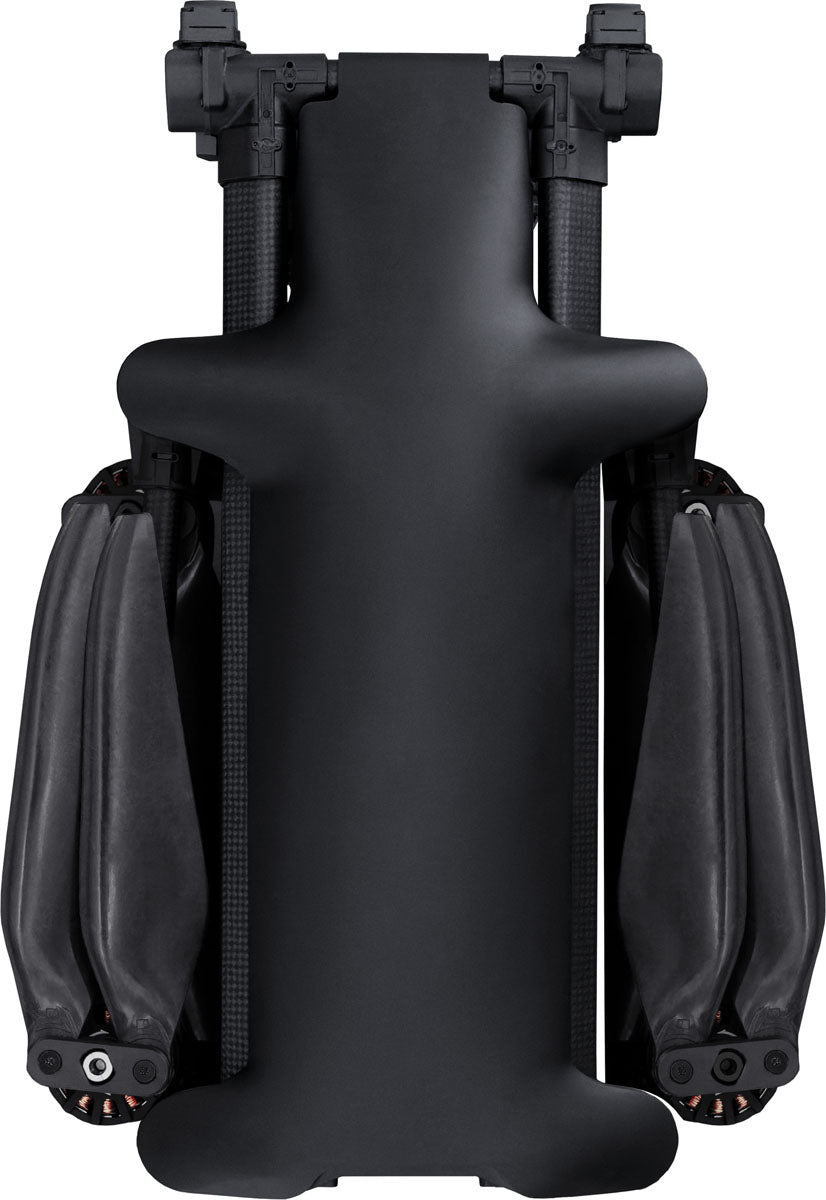

• Size folded: 245 x 160 x 116 mm (9.6 x 6.3 x 4.6”)

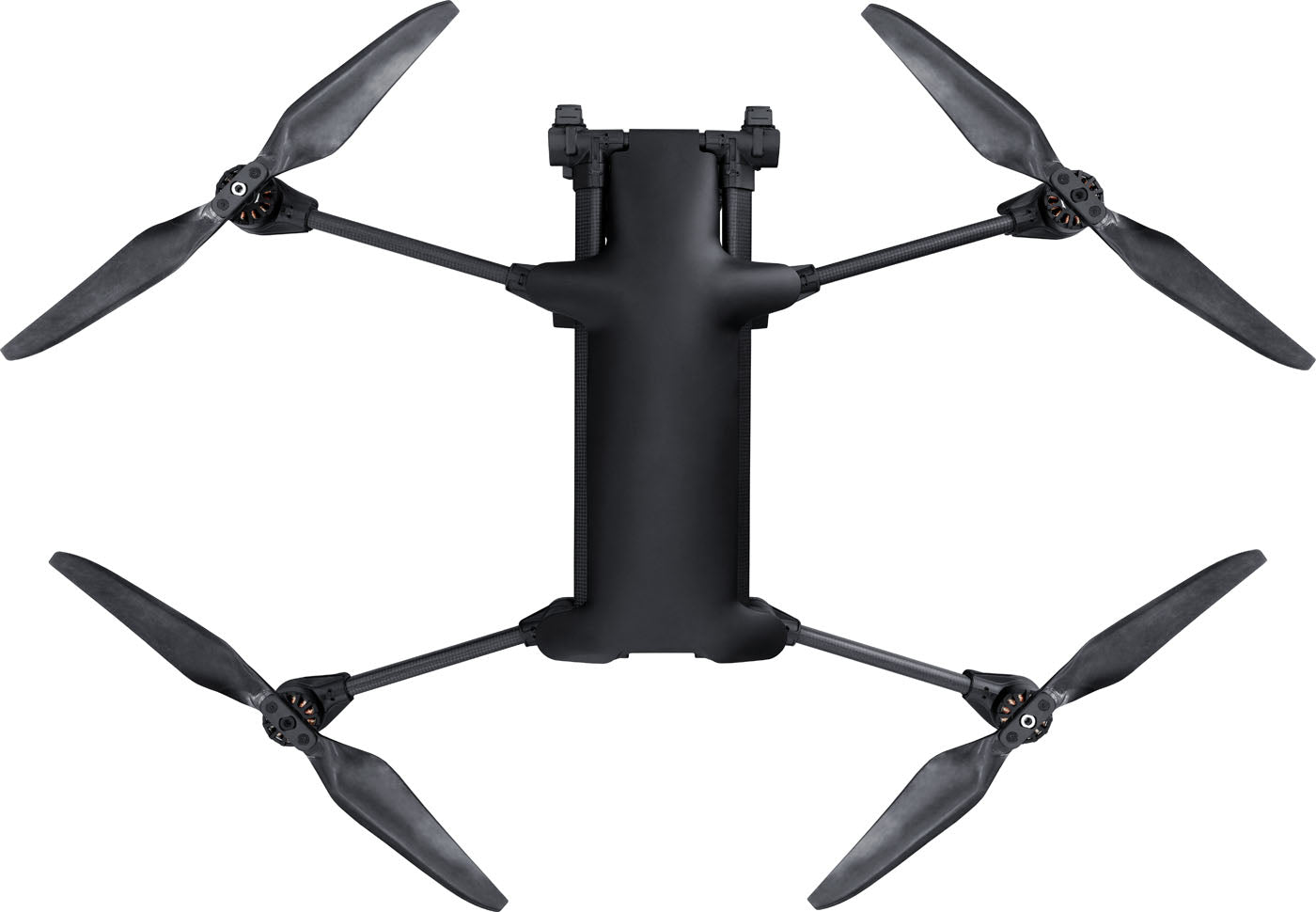

• Size unfolded: 350 x 665 x 116 mm (13.8 x 26.2 x 4.6”)
• Mass: 959 g (2.11 lb)
• Maximum take-off mass (MTOM): 1,450 g / 3.20 lb
• Maximum transmission range:
- 5G*: range without limits
- Wi-Fi*: 5 km / 3.1 mi
- MARS Radio*: 15 km / 9.32 mi
- LoRa: 20 km / 12.43 mi
• Maximum flight time: 38 min at 6 m/s airspeed
• Maximum flight distance: 23.1 km (14.35 mi) at 10 m/s airspeed
• Maximum horizontal airspeed: 17 m/s
• Maximum horizontal groundspeed: 12.6 m/s
• Maximum ascent speed: 8 m/s
• Maximum descent speed: 8 m/s
• Maximum wind resistance:
- During flight: 15 m/s
- During take-off and landing: 15 m/s
• Maximum propeller speed: 8,500 rpm
• Sound power level: 77 dBA
• Service ceiling: 5,000 m above MSL (Mean Sea Level)
• Operating temperature: -36 °C to +50 °C (-33 °F to +122 °F)
• No take-off temperature limitation if battery is maintained between -20 °C and +50 °C (-4 °F to +122 °F)
• IP53: rain and dust resistant
• No NFZ (No-Fly Zones) limitation
• Takes off from / lands in the hand of the operator
• Optical navigation for GNSS-denied flight
• Indoor flight
• MicroSD card slot
• Deployment time: < 2 min
Sensors
• Satellite navigation: GPS, GLONASS, Galileo & BeiDou
• Barometer and magnetometer
• Front and bottom stereo cameras, and vertical range sensor
• 4 x 6-axis IMU (3-axis accelerometers + 3-axis gyroscopes)
(Flight IMU: ICM-40609-D)
Cybersecurity
• Zero data shared without user consent
• Manage your data privately between drone and device or share anonymous data on secured European servers
• SD card AES-XTS encryption with a 512-bit key
• Digitally signed firmware
• Compliant with FIPS140-2
Radio link
• 5G*
• Wi-Fi*
• MARS**(Radio-jamming resistance through Frequency Hopping)
• Encrypted backup LoRa radio
• Direct video stream resolution: 1080p at 30 fps
• AES 256 encryption: packet and radio level
EO Image chain
• 2 sensors: 1/2.4”
• Digital zoom: 35x
• Electronic shutter speed: 1/25 s to 1/10,000 s
• ISO range: 100 - 3,200
• Video resolution: 4K / FHD / HD
• Video format: MP4 (H.264 & H.265)
• Photo resolutions:
- Wide: 21 MP (84° FOV)
- Rectilinear: up to 16 MP (up to 75.2° FOV)
• Photo formats: JPEG, DNG (Digital NeGative RAW)

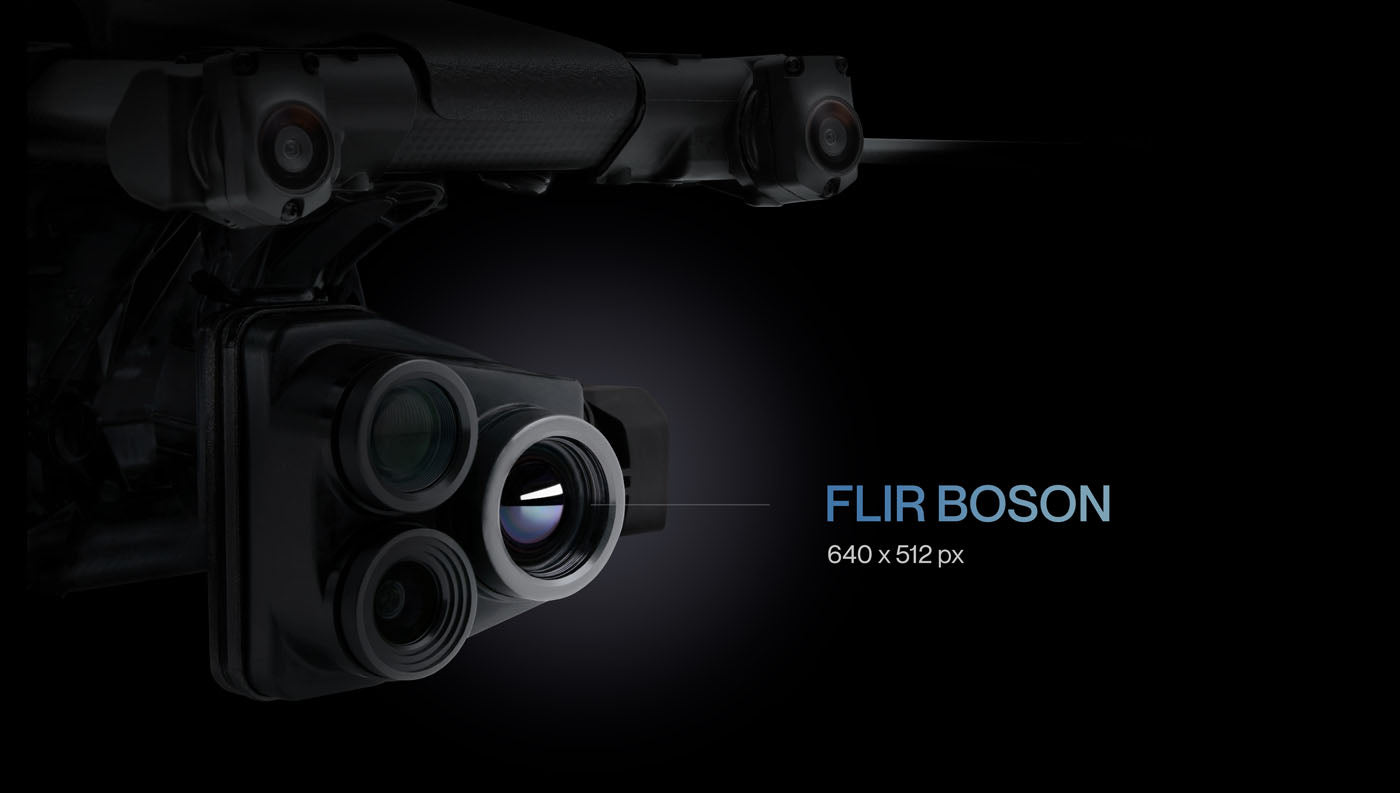

IR Image chain
• Sensor: FLIR BOSON
• Resolution: 640 x 512 px
• Temperature range: -40 °C to +250 °C (-40 °F to +482 °F)
• Thermal sensitivity: ≤60 mK
• Measured IR wavelength range: 8 to 14 micrometers
• Video resolution: UHD (2160p) at 8.6 fps
• Video format: MP4 (H.264 / H.265)
• Photo formats: JPEG

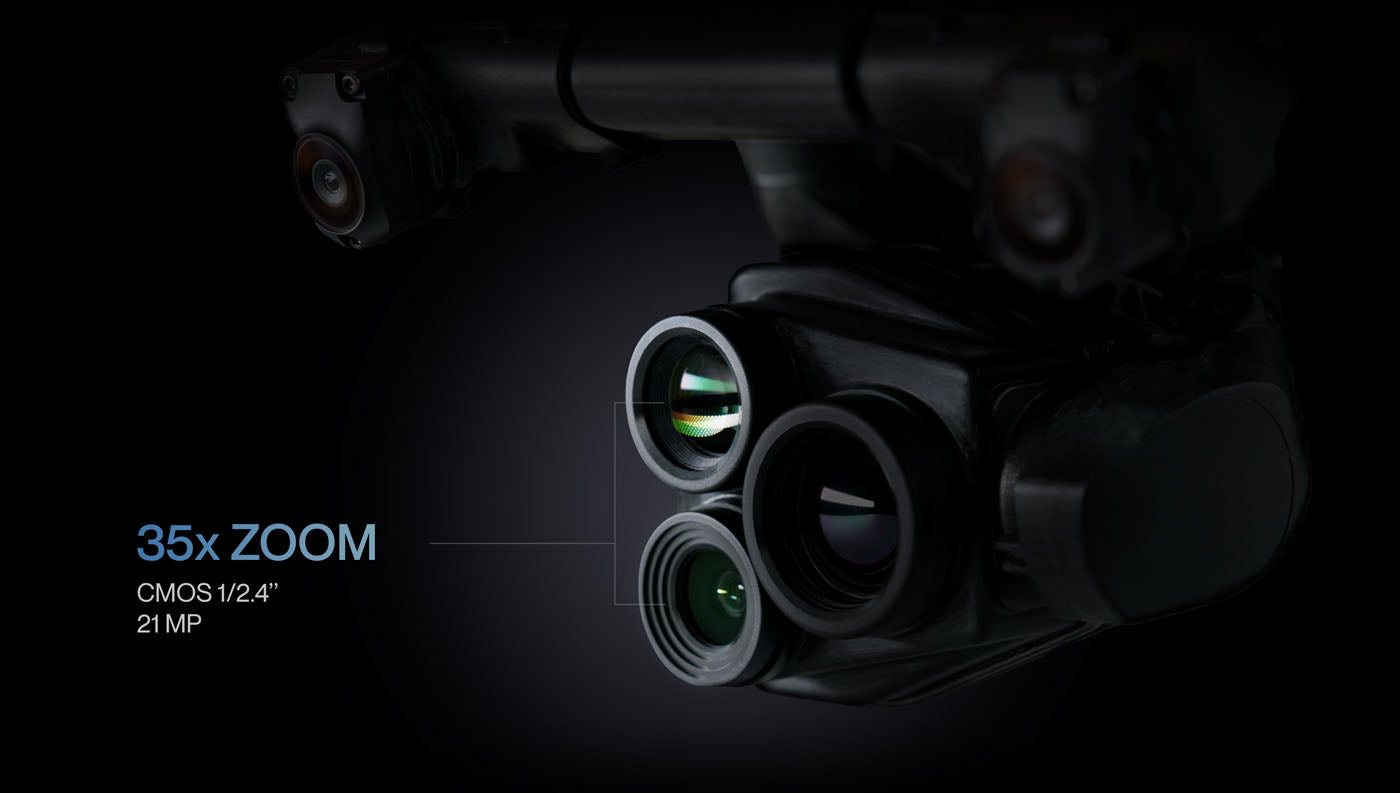

Image stabilization
• 3-camera IR/EO stabilized gimbal:
- Hybrid: 3-axis
- Mechanical: 3-axis
- Electronics (EIS): 3-axis
• Controllable gimbal tilt range: -90° to +90°
Smart battery
• Size: 136 x 73 x 46 mm (5.4 x 2.9 x 1.8”)
• Mass: 344 g / 0.76 lb
• Type: High density LiPo (227 Wh/kg)
• Capacity: 6,800 mAh
• Voltage (nominal): 11.55 V (3 x 3.85 V cells)
• Charging port: USB-C
• Charges fully in 2 h 30 min with the USB-PD (Power Delivery) charger included in the pack
• Maximum charging power: 45 W

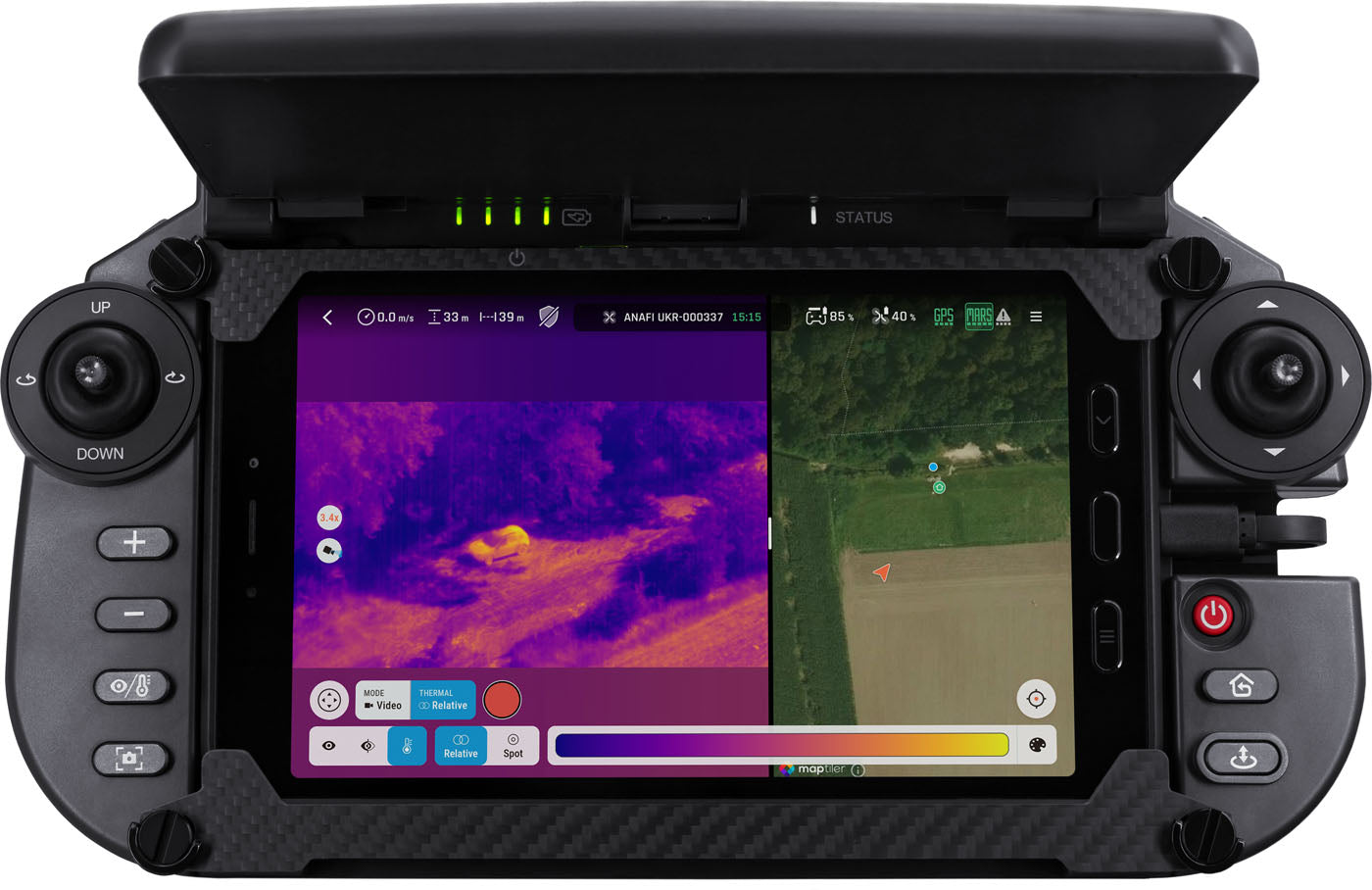

Ground Control Station - Parrot SkyController UKR
• Size folded: 171 x 302 x 77 mm (6.7 x 11.9 x 3.0”)
• Size unfolded: 171 x 302 x 215 mm (6.7 x 11.9 x 8.5”)
• Mass: 1,764 g (3.89 lb)
• Battery capacity: 10,000 mAh
• Battery voltage (nominal): 7.2 V
• Battery charging duration: 2 h (2 h 30 min with tablet)
• Autonomy: 4 h 30 min
• Ports: USB-C (tablet), USB-C (charging), USB-A (pairing + accessory interface), Ethernet (Remote Antenna feature), HDMI
• IP53: rain and dust resistant
• Skycontroller UKR is supplied with a Samsung tablet, but is also compatible with an iPad Mini
• The system is also available without a tablet

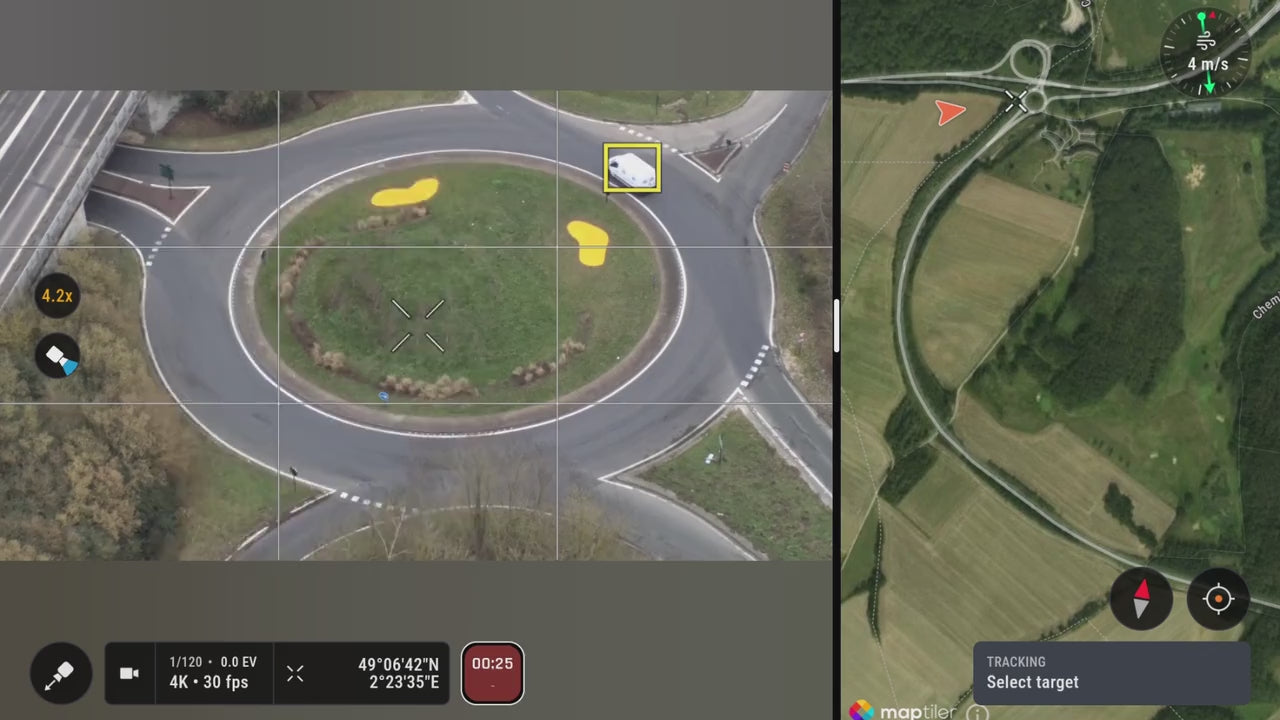

Advanced flight app - FreeFlight 8
• Flight Planning with waypoints and points of interest
• Object recognition & tracking
• Cursor On Target
• Video streaming & recording
• EO and IR cameras settings management
• Touch & Fly
• System settings and management
• Flight logs recording and reviewing
*Version Dependant
**By special request

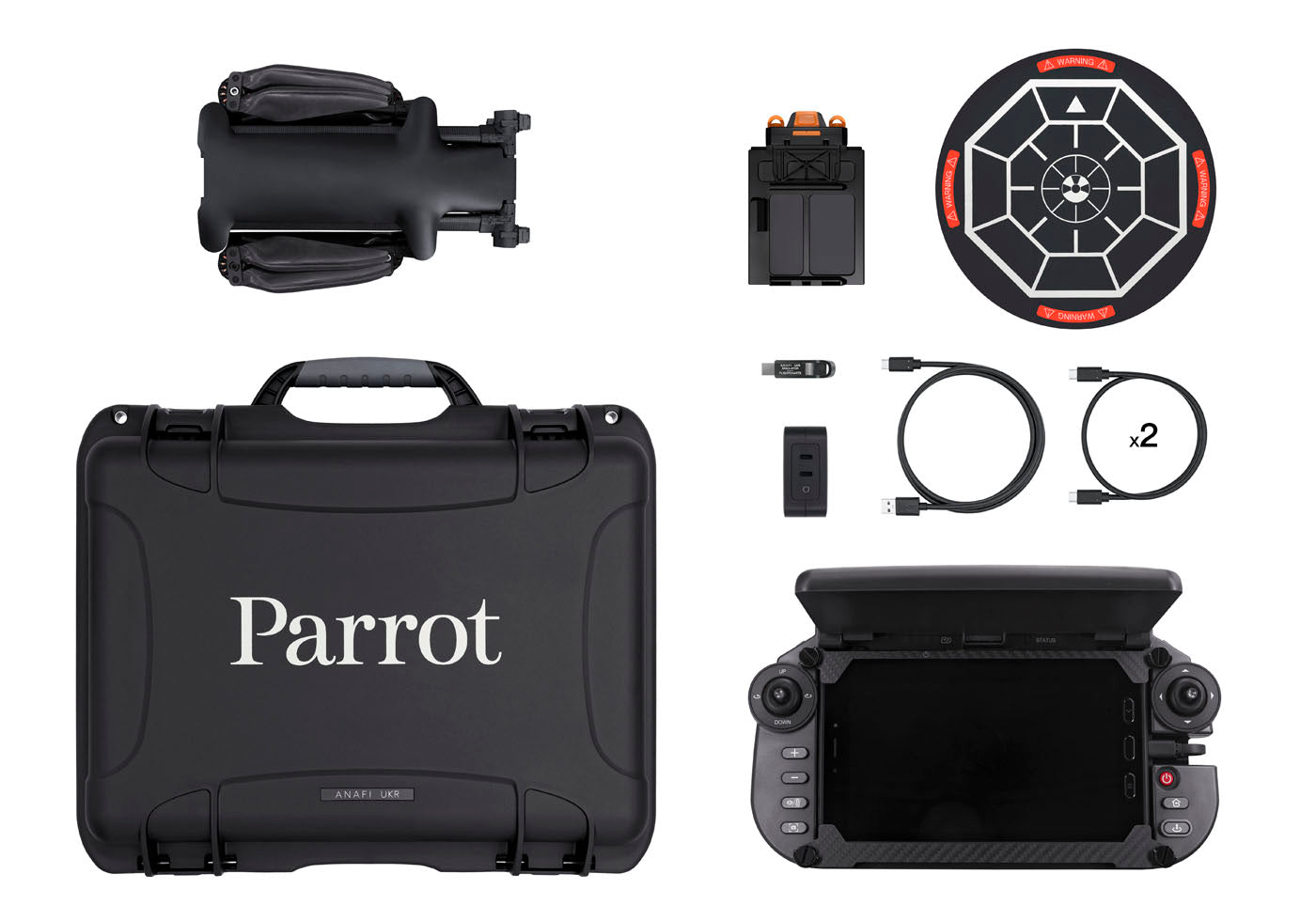

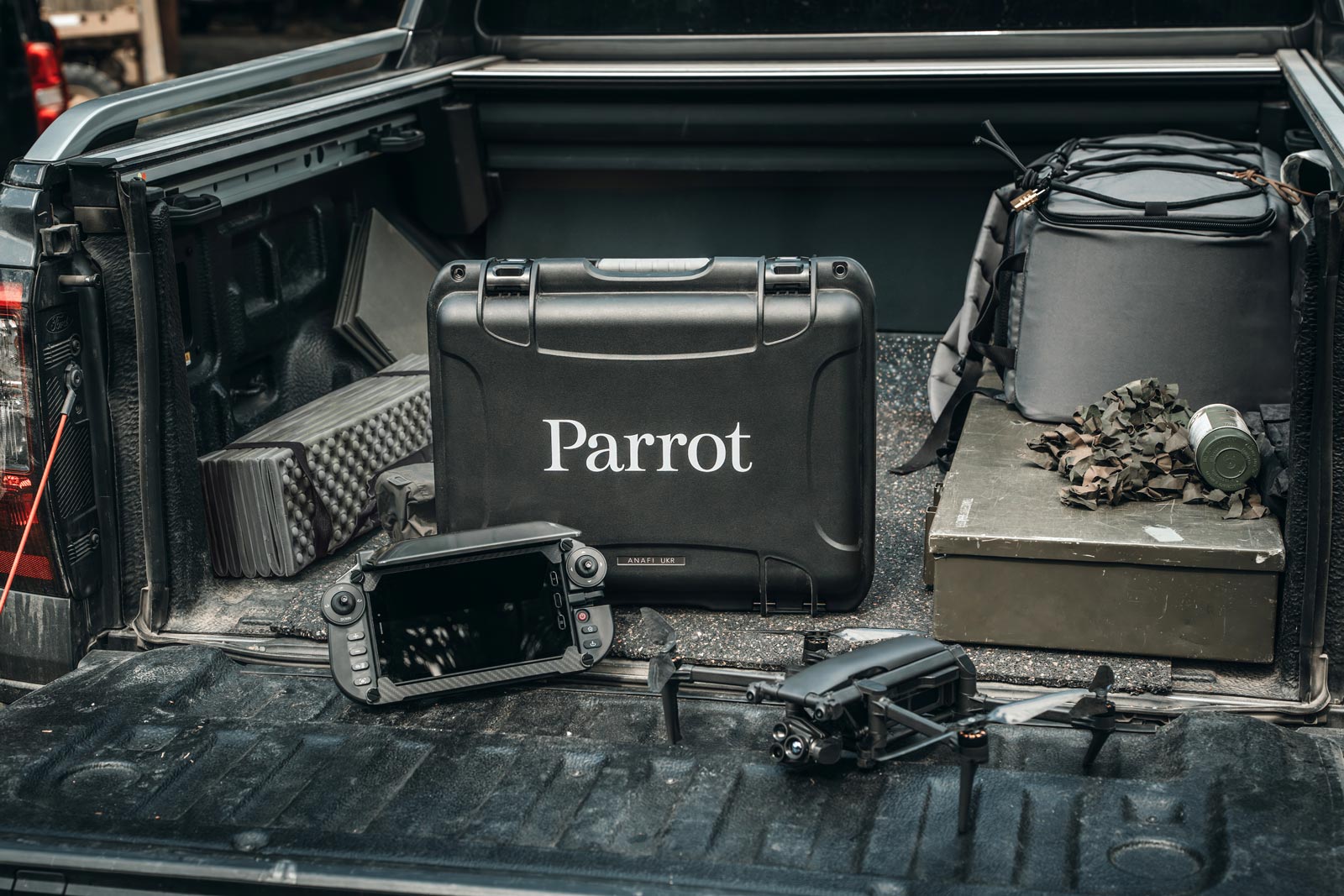

Parrot ANAFI UKR PSV In The Box
- 1x Parrot ANAFI UKR Drone
- 1x Parrot Skycontroller UKR + Samsung Tablet
- 1x Smart battery

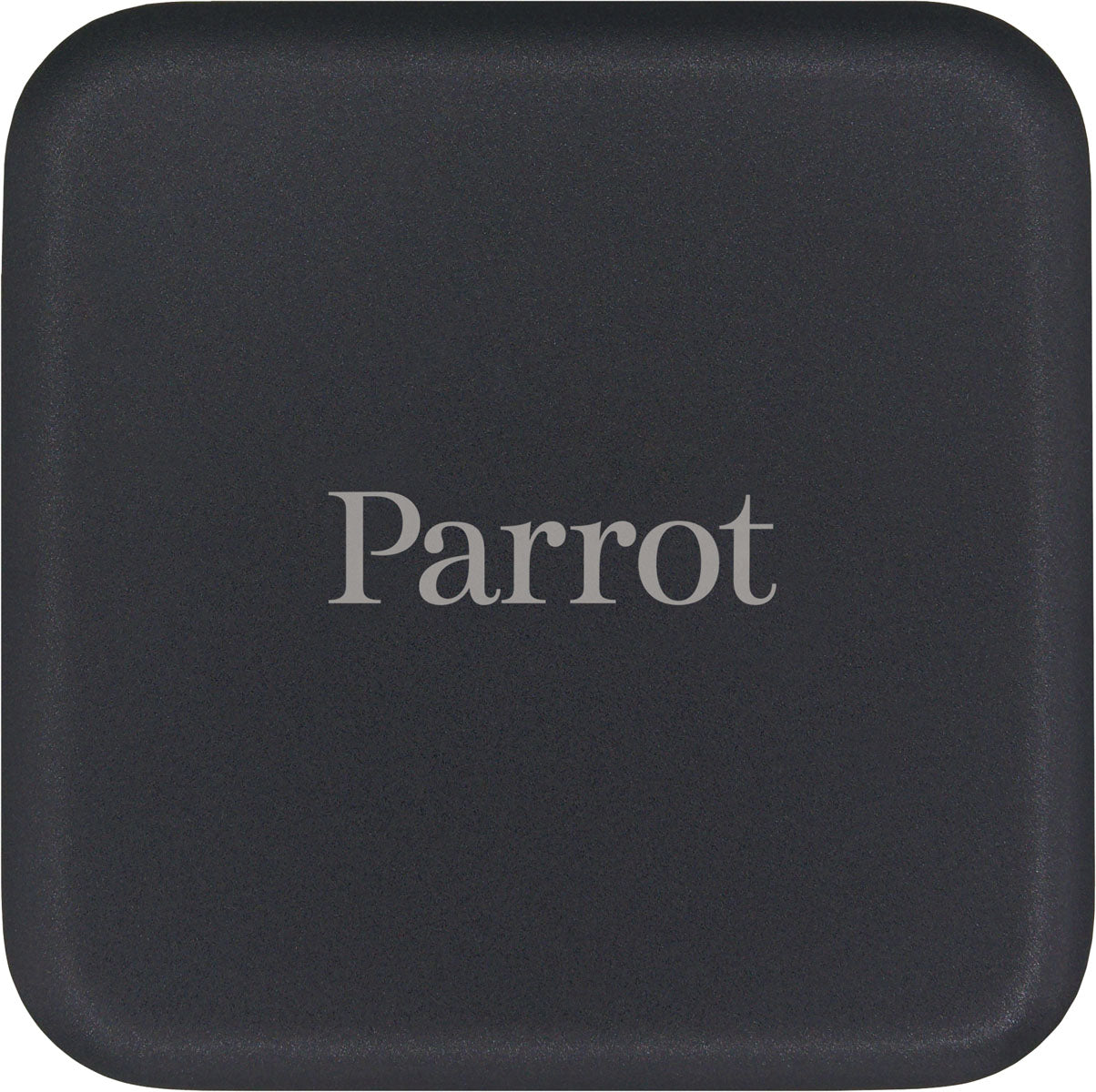

- 1x PD charger
- 2x USB-C / USB-C cables
- 1x USC-A / USA-C cable

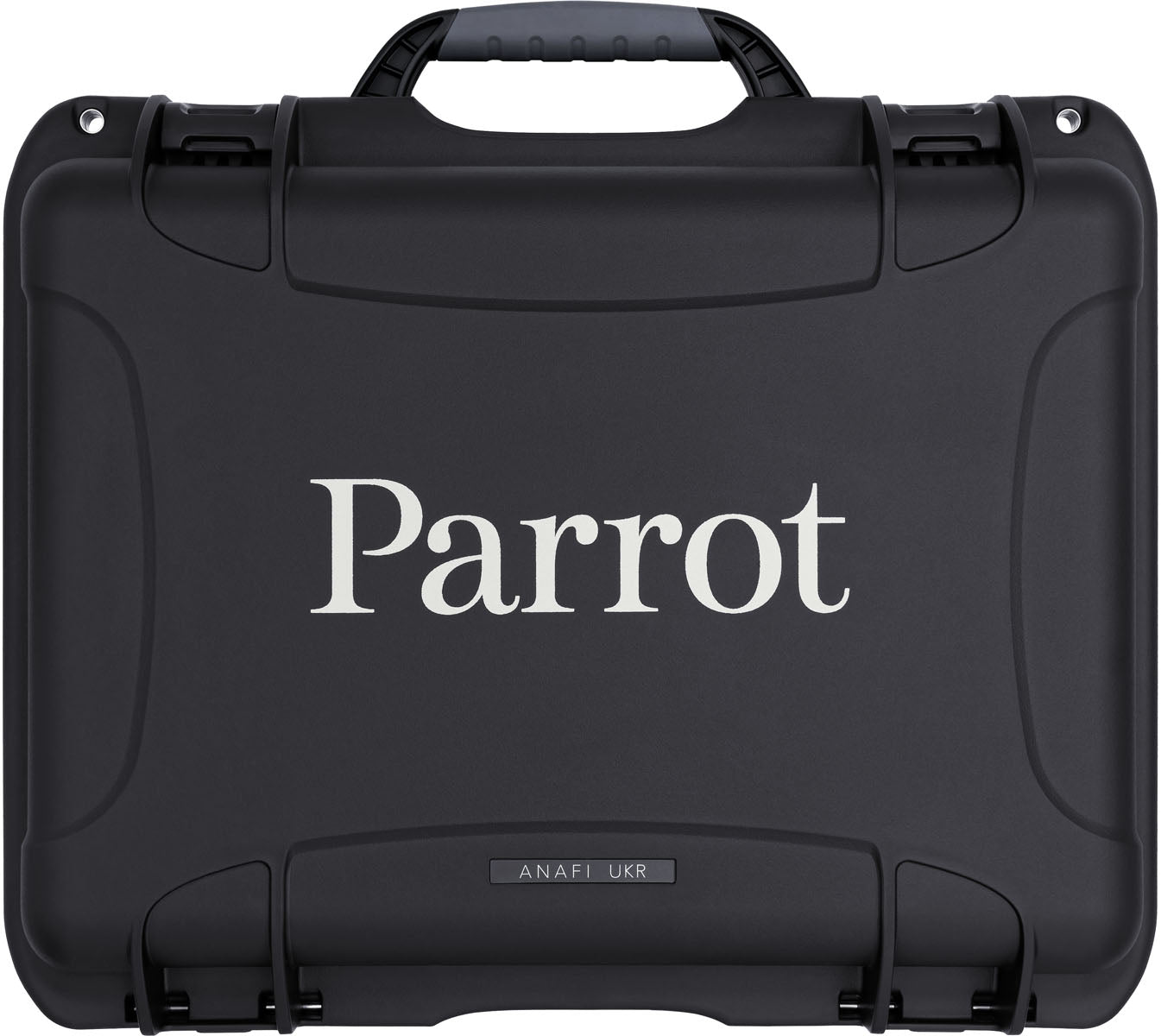

- 1x Transport Hard case
