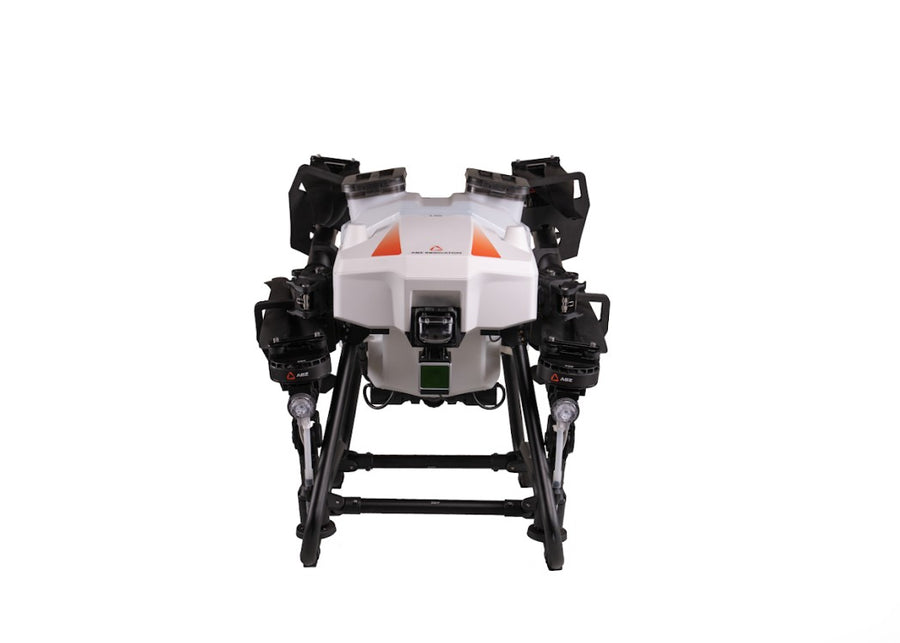

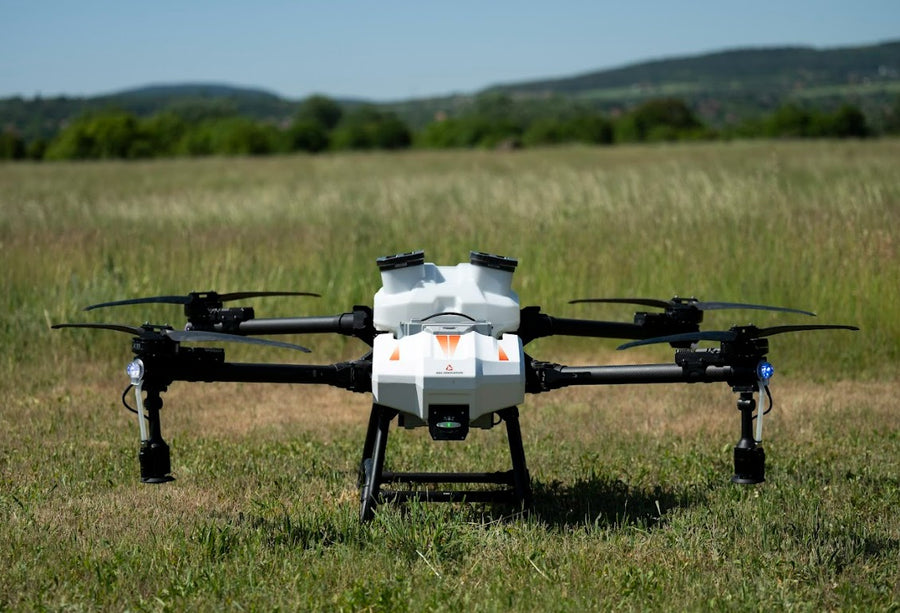

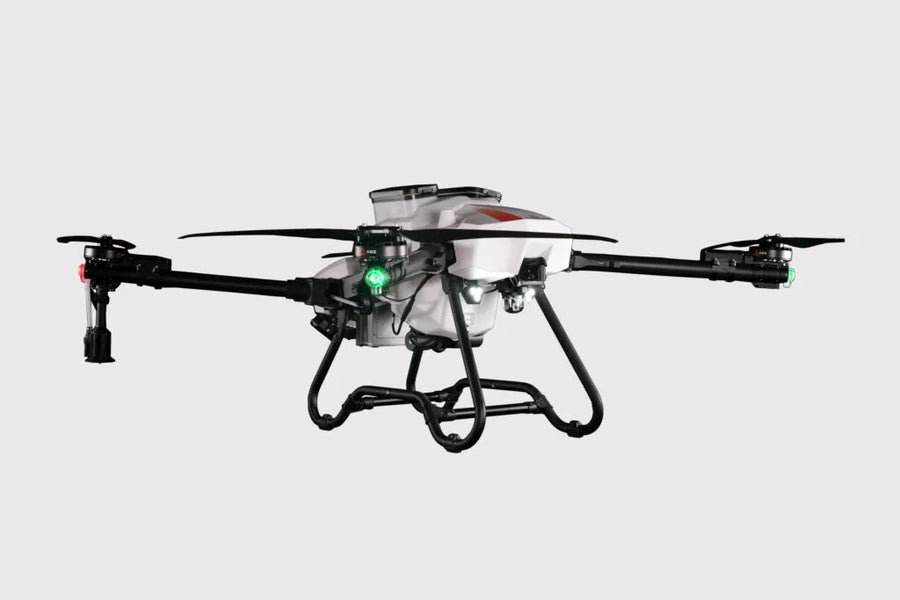

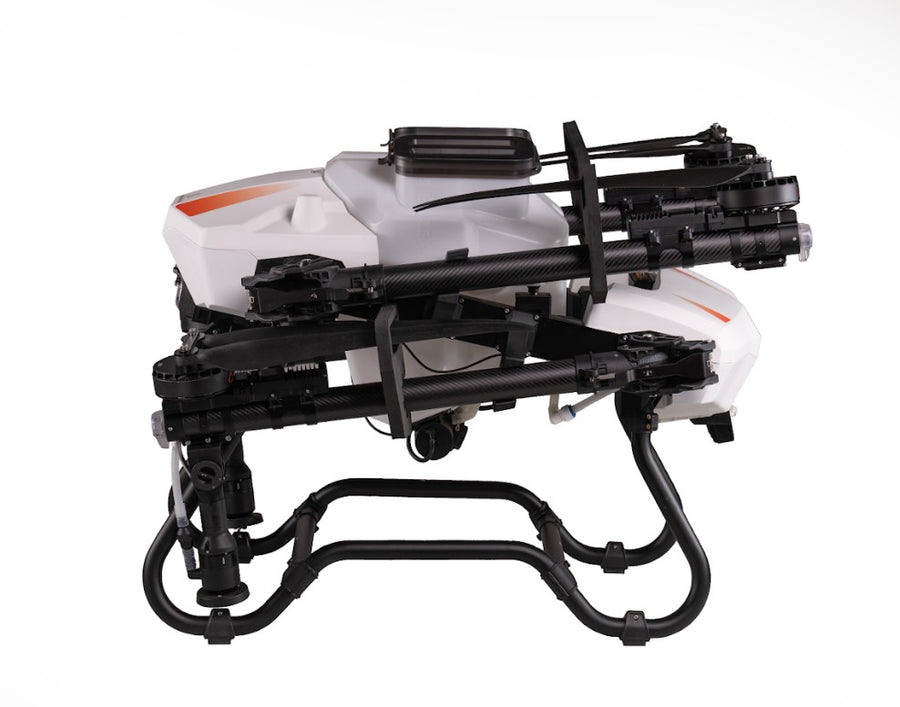

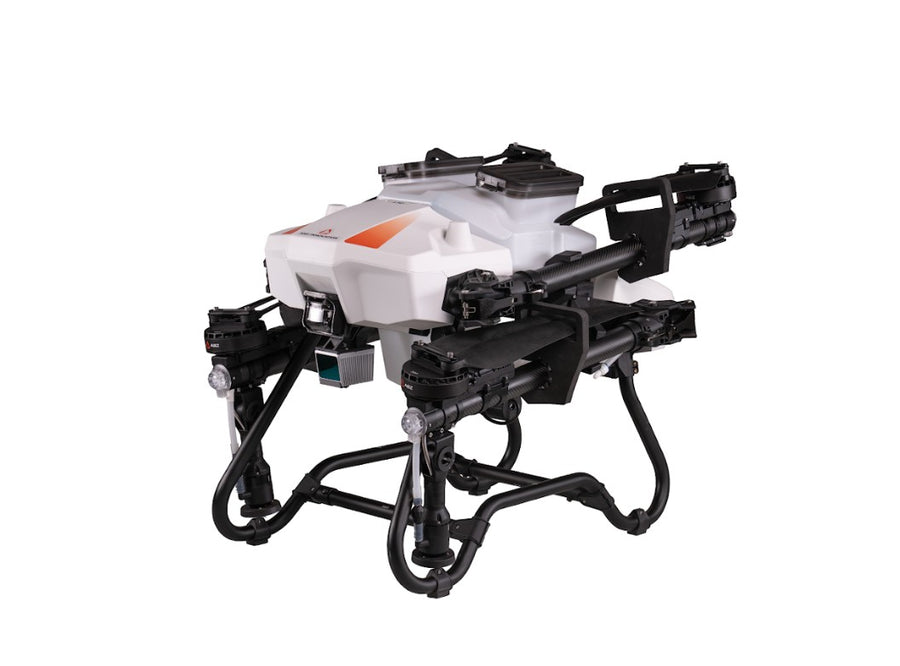

ABZ Innovation L30 Spraying Drone | 30L CDA Agriculture Drone, Aircraft Only
Other Configurations
Talk to a Drone Nerds expert
Real pilots, Mon-Fri 9-6 ET. Questions, pricing, fleet quotes.
DRONE NERDS RECOMMENDED ACCESSORIES
ABZ L30 30 liters. 52 acres an hour. Droplets you control.
The first European-made 30-liter spraying drone, built around a Controlled Droplet Application rotating-disc system that puts the right droplet size exactly where it's needed. Up to 21 ha/h (β52 ac/h) at 16 L/min, dual-RTK centimeter positioning, LiDAR 3D obstacle avoidance, and compatibility with the optional 50 L spreader for seed and granular. This listing is the aircraft and spray system only, for operators adding to an existing ABZ fleet or sourcing batteries, charger and spreader separately.
Sized for the farm
between small and huge.
Designed for medium to larger operations, 50 to 300 ha, where a tractor is too slow, too heavy after rain, or can't get in at all. The L30 balances working speed, low operating cost and easy logistics.
-
Payload30Lβ8 gal spray tank Β· compatible with the optional 50 L (β13 gal) spreader
-
Coverage21ha/hβ52 acres per hour maximum spraying performance
-
Weight41.9kgβ92 lb with battery Β· 72 kg (β159 lb) max takeoff mass
-
Charging15minRapid charging minimum with the ABZ L30 charger, sold separately
Controlled Droplet Application.
Less product. Better coverage.
Instead of pressure nozzles, the L30 uses liquid-cooled rotating discs that spin the liquid into droplets of a size you choose, from 60 to 1,000 microns. The right size for the crop and the weather means less drift, less waste, and more product landing where it works.
-

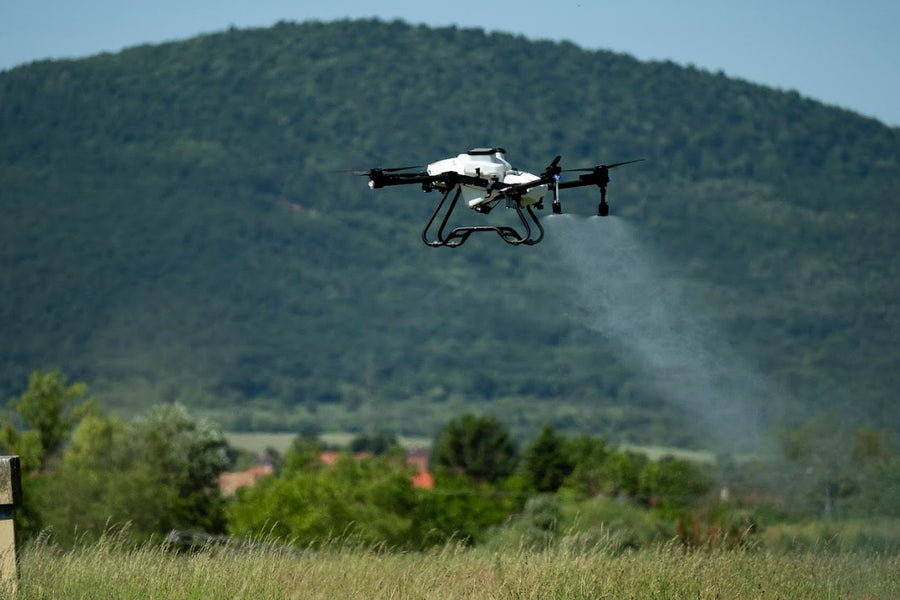

Mode 1
Spraying
30 L tank, CDA rotating discs, optimized downward airflow for canopy penetration.
- Flow rateUp to 16 L/min
- Droplet size60 to 1,000 Β΅m
- CoverageUp to 21 ha/h
-
Mode 2

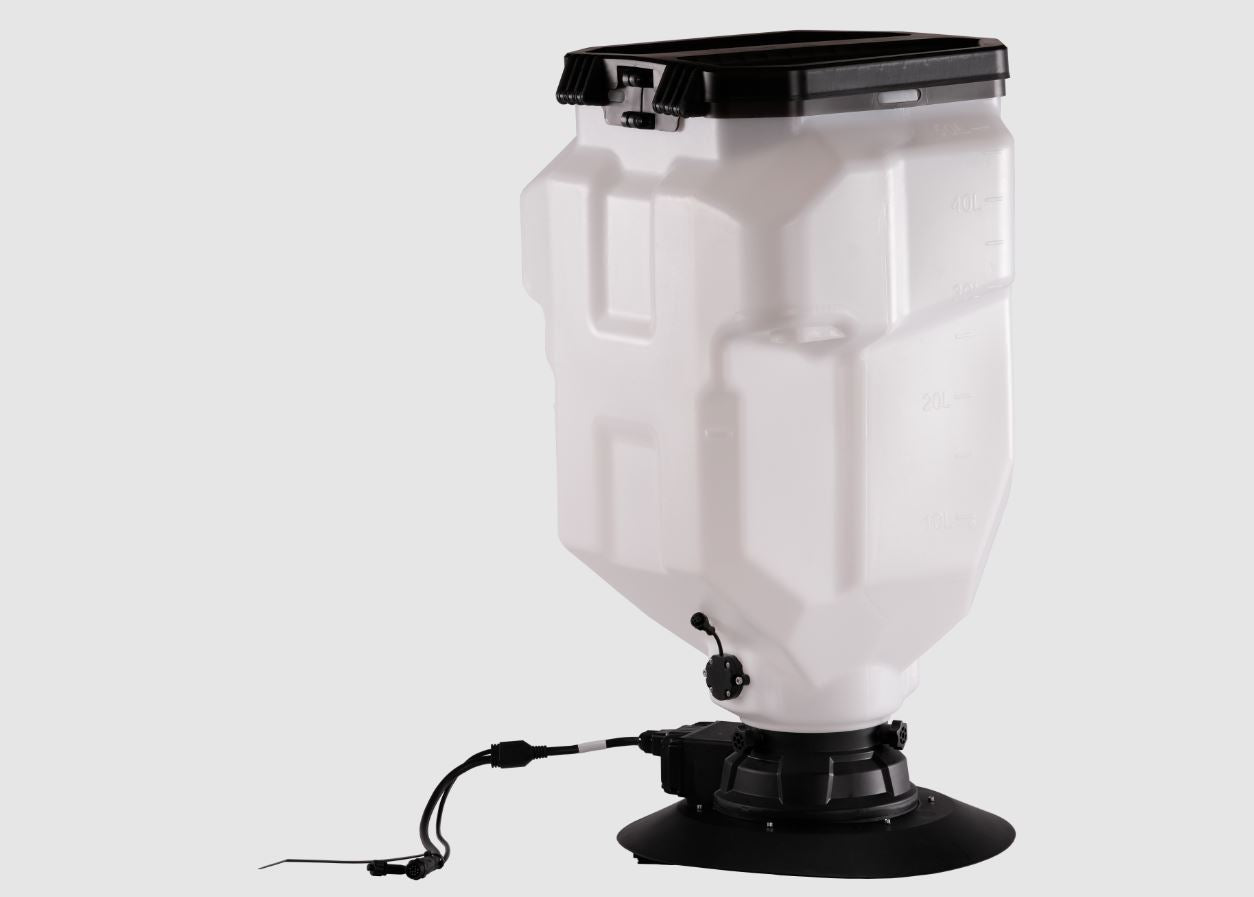

Spreading
Add the optional 50 L spreader for seed, granular fertilizer and deicing agents. A Trichogramma dispersal system is also available for biological pest control.
- Capacity50 L (β13 gal)
- FlowAdjustable rate
- AvailabilitySold separately
Centimeter positioning.
Open software. Your data stays yours.
Dual-RTK and 3D LiDAR obstacle avoidance for straight, repeatable passes over uneven ground, and a flight planner that optimizes the route before you lift off.
-
Β±10 cm
Dual-RTK positioning
Centimeter-level accuracy for consistent swath spacing and clean field edges.
-
LiDAR
ABZ sense 3D obstacle avoidance
LiDAR-based detection of trees, poles and wires on hilly or fragmented ground.
-

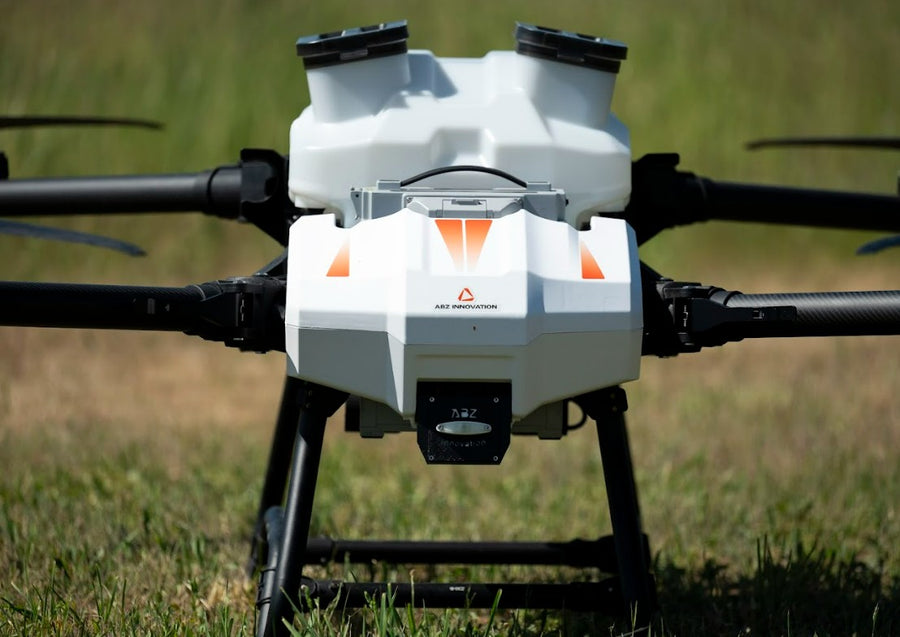

FHD
Camera, 0 to 180Β° tilt
See the field and the tank from the controller.
-
Plan
Advanced flight planning
Route optimization for maximum efficiency, with dedicated planning for vineyards and orchards.
-
OSS
Open-source ArduPilot
Open flight stack means the platform is customizable and not locked to one vendor's cloud. Compatible with Emlid RTK base stations.
-
Local
No remote data transmission
Flight and field data stay on your equipment. Nothing goes to remote servers.
Where it earns
its keep.
Documented results from ABZ field work. Fast response after rain, short treatment windows, and ground a tractor can't reach.
-
Cereals and arable
Medium to large fields, 50 to 300 ha. Immediate intervention after rain when tractors would compact or sink.
WheatRow crops -
Orchards and vineyards
Low and mid-canopy specialty crops where downward airflow and droplet control matter most.
CitrusVines -
Solar panel washing
The same airframe and pump cleaning panel arrays. One drone, two revenue streams.
Solar farmsWashing -
Seeding and granular
Cover crops, fertilizer and deicing with the optional 50 L spreader.
SeedFertilizer
Drone only
or Ready to Fly Kit?

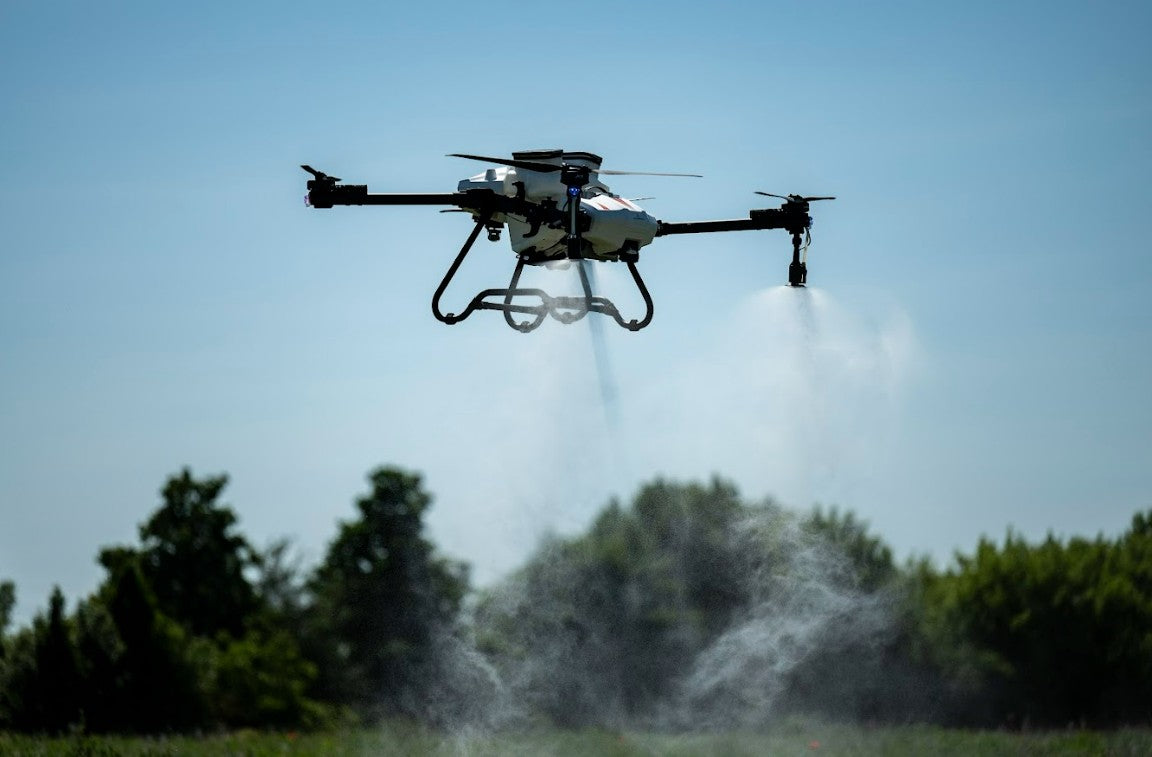

Same aircraft. The kit adds everything needed to put it to work on day one.
| Included | L30 Drone Only | L30 Ready to Fly Kit β |
|---|---|---|
| L30 drone package with CDA spray system | Yes | Yes |
| ABZ L30 batteries | Not included | 4 |
| ABZ L30 charger | Not included | Yes |
| ABZ 50L spreader | Not included | Yes |
| Price | $19,754 | $34,595 |
Rule of thumb: this is the right box if you already run L30 batteries and a charger and want a second aircraft. First L30? The kit's four batteries, charger and spreader cost less together than bought separately.
First L30? See the Ready to Fly Kit with batteries, charger and spreader β
Key specifications
Manufacturer figures for the L30 V2. US conversions are approximate.
- Application
- Spray tank30 L (β8 gal)
- Spreader50 L (β13 gal), optional
- TechnologyLiquid-cooled CDA rotating disc
- Droplet size60 to 1,000 Β΅m adjustable
- Max flow16 L/min (β4.2 gal/min)
- Max coverage21 ha/h (β52 ac/h)
- Aircraft
- Weight with battery41.9 kg (β92 lb)
- Max takeoff mass72 kg (β159 lb)
- PositioningDual-RTK, Β±10 cm
- Obstacle avoidance3D LiDAR (ABZ sense)
- Flight controllerOpen-source ArduPilot
- RTK baseEmlid compatible
- CameraFHD, 0 to 180Β° vertical
- CertificationsCE, ISO, FCC
- Power and kit
- BatteryABZ L30 (Smart Battery 30), sold separately
- Battery cyclesUp to 1,000
- Rapid chargeMin. 15 minutes
- ChargerABZ L30 charger, sold separately
- DataNo transmission to remote servers
- SKUABZL30SB
In the box
The aircraft and its spray system. Power and spreader are sold separately.
- ABZ Innovation L30 drone package with CDA spray systemΓ1
Keep it
in the air.
Spares and power. Ag drones work hard; plan for it.
-
Must-haveABZ L30 Battery
Not included with the drone-only listing. Plan on at least four to keep the aircraft cycling.
Shop battery -
Must-haveABZ L30 Charger
Required to charge L30 batteries. Not included with the drone-only listing.
Shop charger -

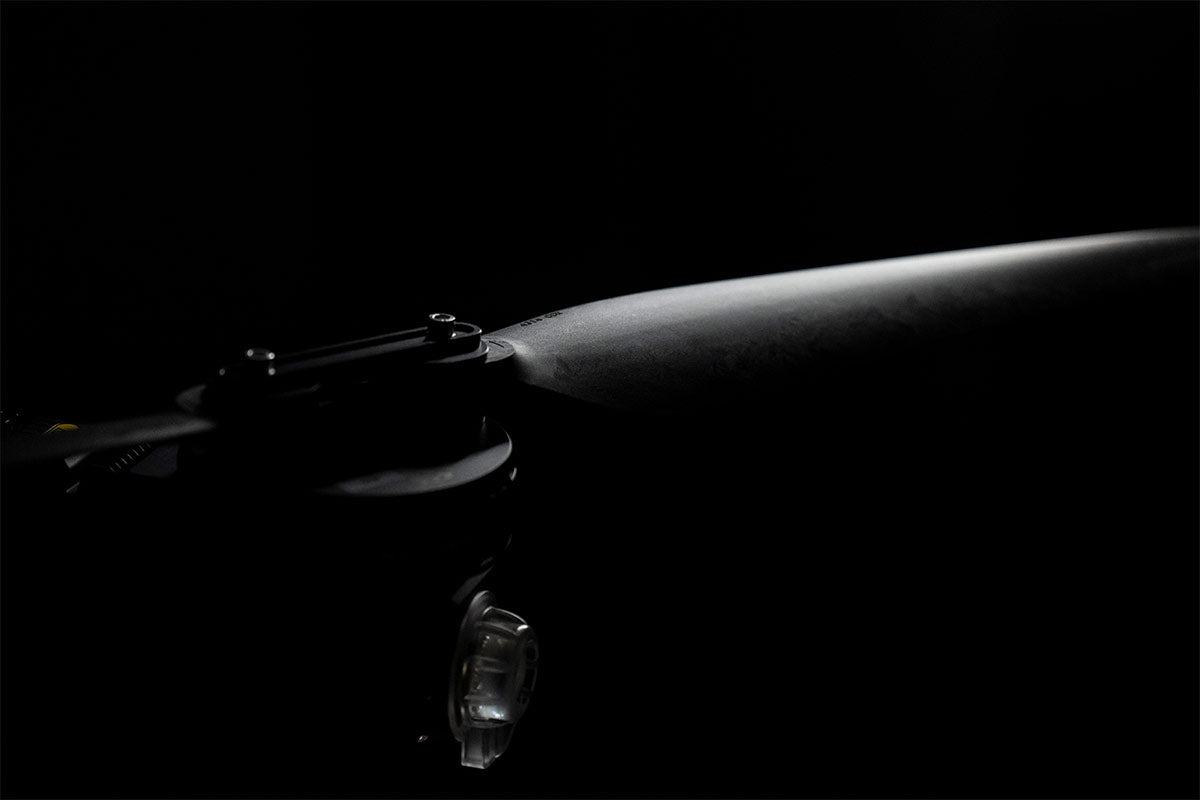

SparesL30 Propeller CW (per motor)
Keep a set in the trailer. Field repairs are possible with ABZ service kits.
Shop CW props -
Questions we get
about the L30.
Straight answers from the team that configures and supports these systems.
What do I need to spray legally in the US?
Agricultural spraying by drone is a Part 137 operation. You'll need a Part 107 remote pilot certificate, a Part 137 agricultural aircraft operator certificate, and because the L30 is over 55 lb, a 44807 exemption from the FAA. State pesticide applicator licensing applies too. Our enterprise team has walked many operators through this; call us before you buy and we'll map it out.
How is CDA different from nozzle spraying?
Conventional nozzles force liquid through an orifice under pressure, producing a wide, uncontrolled range of droplet sizes. CDA spins the liquid off a rotating disc, so droplets come out at a consistent size you set, from 60 to 1,000 microns. Consistent droplets mean predictable coverage and far less drift and waste.
How much area per battery?
Coverage depends on application rate, speed and terrain, so plan on the field rather than a single number. The 21 ha/h figure is maximum spraying performance. Plan on four batteries and a charger to keep the aircraft cycling through a full morning.
Can it do more than spray?
Yes. The optional 50 L spreader handles seed, granular fertilizer and deicing agents. Operators also use the L30 for greenhouse shading and solar panel washing.
Why does open-source ArduPilot matter?
The L30 runs an open flight stack, so the development roadmap follows customer feedback and the system can be customized rather than locked to a manufacturer cloud. It also means no flight or field data is transmitted to remote servers; it stays on your equipment.
Who services it?
Drone Nerds is an authorized ABZ Innovation dealer and ABZ provides a service package portfolio. Some repairs can be done in the field with ABZ service kits and support, which matters when the window to spray is short.
What exactly is included?
The L30 aircraft with its CDA spray system. No batteries, no charger, no spreader; those are sold separately or bundled in the Ready to Fly Kit. This listing is for operators adding an aircraft to an existing L30 setup.
Configured by the people
who fly them.
Drone Nerds is an authorized ABZ Innovation dealer. Enterprise specialists, agency and fleet purchasing, Part 137 guidance, and support from South Florida. Tell us the acreage and the crops; we'll spec the kit.
Authorized ABZ Innovation dealer
Factory-new US stock with full manufacturer warranty.
Regulatory guidance
Part 107, Part 137 and 44807 exemption support for operators over 55 lb.
Enterprise financing and purchasing
Approve financing, agency POs, and multi-unit pricing for ag operators.
Setup and support
Call 786-708-7807 and reach someone who has configured this system.
