ABZ Innovation L30 Ready to Fly Kit | 30L CDA Spraying Drone with 50L Spreader
Other Configurations
Talk to a Drone Nerds expert
Real pilots, Mon-Fri 9-6 ET. Questions, pricing, fleet quotes.
DRONE NERDS RECOMMENDED ACCESSORIES
ABZ L30 30 liters. 52 acres an hour. Droplets you control.
The first European-made 30-liter spraying drone, built around a Controlled Droplet Application rotating-disc system that puts the right droplet size exactly where it's needed. Up to 21 ha/h (β52 ac/h) at 16 L/min, dual-RTK centimeter positioning, LiDAR 3D obstacle avoidance, and a 50 L spreader for seed and granular. This Ready to Fly Kit ships with four batteries, the charger and the spreader.
Sized for the farm
between small and huge.
Designed for medium to larger operations, 50 to 300 ha, where a tractor is too slow, too heavy after rain, or can't get in at all. The L30 balances working speed, low operating cost and easy logistics.
-
Payload30Lβ8 gal spray tank Β· 50 L (β13 gal) spreader included in this kit
-
Coverage21ha/hβ52 acres per hour maximum spraying performance
-
Weight41.9kgβ92 lb with battery Β· 72 kg (β159 lb) max takeoff mass
-
Charging15minRapid charging minimum Β· four batteries in the kit keep the aircraft working
Controlled Droplet Application.
Less product. Better coverage.
Instead of pressure nozzles, the L30 uses liquid-cooled rotating discs that spin the liquid into droplets of a size you choose, from 60 to 1,000 microns. The right size for the crop and the weather means less drift, less waste, and more product landing where it works.
-
Mode 1
Spraying
30 L tank, CDA rotating discs, optimized downward airflow for canopy penetration.
- Flow rateUp to 16 L/min
- Droplet size60 to 1,000 Β΅m
- CoverageUp to 21 ha/h
-
Mode 2

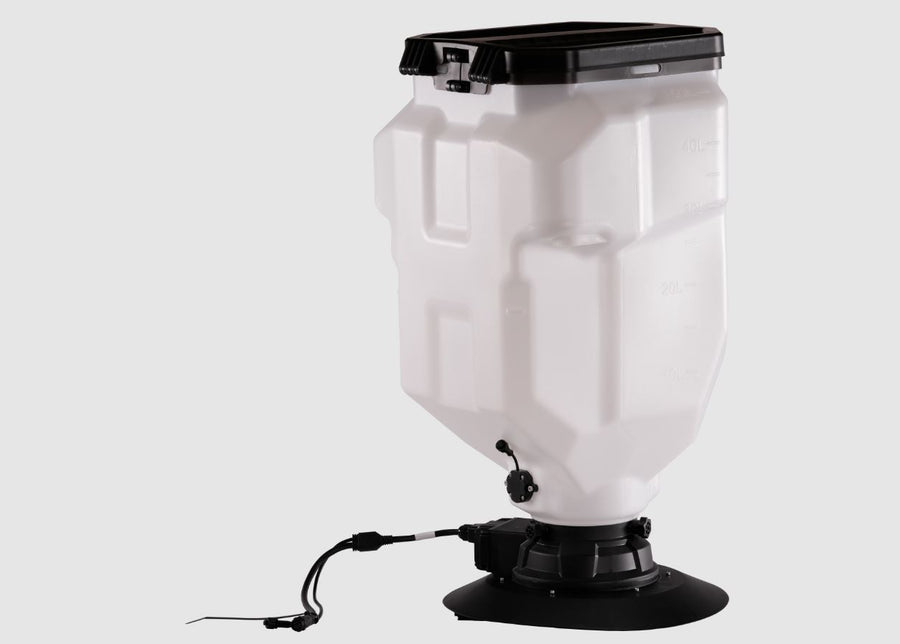

Spreading
Swap to the 50 L spreader for seed, granular fertilizer and deicing agents. A Trichogramma dispersal system is also available for biological pest control.
- Capacity50 L (β13 gal)
- FlowAdjustable rate
- DistributionEven, seeds and granules
Centimeter positioning.
Open software. Your data stays yours.
Dual-RTK and 3D LiDAR obstacle avoidance for straight, repeatable passes over uneven ground, and a flight planner that optimizes the route before you lift off.
-
Β±10 cm
Dual-RTK positioning
Centimeter-level accuracy for consistent swath spacing and clean field edges.
-
LiDAR
ABZ sense 3D obstacle avoidance
LiDAR-based detection of trees, poles and wires on hilly or fragmented ground.
-
FHD
Camera, 0 to 180Β° tilt
See the field and the tank from the controller.
-
Plan
Advanced flight planning
Route optimization for maximum efficiency, with dedicated planning for vineyards and orchards.
-
OSS
Open-source ArduPilot
Open flight stack means the platform is customizable and not locked to one vendor's cloud. Compatible with Emlid RTK base stations.
-
Local
No remote data transmission
Flight and field data stay on your equipment. Nothing goes to remote servers.
Where it earns
its keep.
Documented results from ABZ field work. Fast response after rain, short treatment windows, and ground a tractor can't reach.
-
Cereals and arable
Medium to large fields, 50 to 300 ha. Immediate intervention after rain when tractors would compact or sink.
WheatRow crops -
Orchards and vineyards
Low and mid-canopy specialty crops where downward airflow and droplet control matter most.
CitrusVines -
Solar panel washing
The same airframe and pump cleaning panel arrays. One drone, two revenue streams.
Solar farmsWashing -
Seeding and granular
Cover crops, fertilizer and deicing with the 50 L spreader in this kit.
SeedFertilizer
Ready to Fly Kit
or drone only?
Same aircraft. The kit is what you need to put it to work on day one.
| Included | L30 Ready to Fly Kit | L30 Drone Only β |
|---|---|---|
| L30 drone package with CDA spray system | Yes | Yes |
| ABZ L30 batteries | 4 | Not included |
| ABZ L30 charger | Yes | Not included |
| ABZ 50L spreader | Yes | Not included |
| Price | $34,595 | $19,754 |
Rule of thumb: four batteries and the charger are the difference between spraying all morning and waiting on a charge. If this is your first L30, take the kit; the spreader alone opens up seeding and fertilizer work.
Already running L30 batteries and a charger? See the drone only β
Key specifications
Manufacturer figures for the L30 V2. US conversions are approximate.
- Application
- Spray tank30 L (β8 gal)
- Spreader50 L (β13 gal), included
- TechnologyLiquid-cooled CDA rotating disc
- Droplet size60 to 1,000 Β΅m adjustable
- Max flow16 L/min (β4.2 gal/min)
- Max coverage21 ha/h (β52 ac/h)
- Aircraft
- Weight with battery41.9 kg (β92 lb)
- Max takeoff mass72 kg (β159 lb)
- PositioningDual-RTK, Β±10 cm
- Obstacle avoidance3D LiDAR (ABZ sense)
- Flight controllerOpen-source ArduPilot
- RTK baseEmlid compatible
- CameraFHD, 0 to 180Β° vertical
- CertificationsCE, ISO, FCC
- Power and kit
- Batteries4 Γ ABZ L30 (Smart Battery 30)
- Battery cyclesUp to 1,000
- Rapid chargeMin. 15 minutes

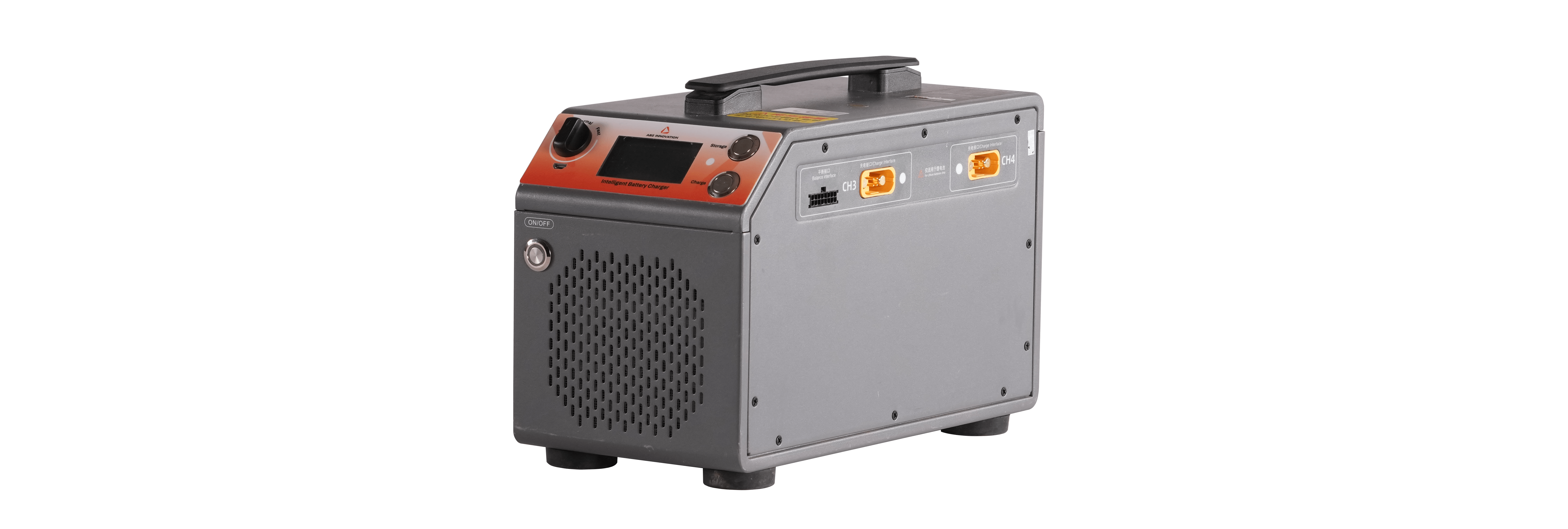

- ChargerABZ L30 charger, included
- DataNo transmission to remote servers
- SKUABZL30RTF
In the kit
Everything to spray and spread from the first day.
- ABZ Innovation L30 drone packageΓ1
- ABZ L30 batteryΓ4
- ABZ L30 chargerΓ1
- ABZ 50L spreader systemΓ1
Keep it
in the air.
Spares and power. Ag drones work hard; plan for it.
-
Must-haveABZ L30 Battery
Four ship in the kit. A fifth and sixth keep two charging while two fly.
Shop battery -
-
SparesL30 Propeller CW (per motor)
Keep a set in the trailer. Field repairs are possible with ABZ service kits.
Shop CW props -
Questions we get
about the L30.
Straight answers from the team that configures and supports these systems.
What do I need to spray legally in the US?
Agricultural spraying by drone is a Part 137 operation. You'll need a Part 107 remote pilot certificate, a Part 137 agricultural aircraft operator certificate, and because the L30 is over 55 lb, a 44807 exemption from the FAA. State pesticide applicator licensing applies too. Our enterprise team has walked many operators through this; call us before you buy and we'll map it out.
How is CDA different from nozzle spraying?
Conventional nozzles force liquid through an orifice under pressure, producing a wide, uncontrolled range of droplet sizes. CDA spins the liquid off a rotating disc, so droplets come out at a consistent size you set, from 60 to 1,000 microns. Consistent droplets mean predictable coverage and far less drift and waste.
How much area per battery?
Coverage depends on application rate, speed and terrain, so plan on the field rather than a single number. The 21 ha/h figure is maximum spraying performance. Four batteries plus 15-minute rapid charging are what let a crew keep the aircraft cycling through a full morning.
Can it do more than spray?
Yes. The 50 L spreader in this kit handles seed, granular fertilizer and deicing agents. Operators also use the L30 for greenhouse shading and solar panel washing.
Why does open-source ArduPilot matter?
The L30 runs an open flight stack, so the development roadmap follows customer feedback and the system can be customized rather than locked to a manufacturer cloud. It also means no flight or field data is transmitted to remote servers; it stays on your equipment.
Who services it?
Drone Nerds is an authorized ABZ Innovation dealer and ABZ provides a service package portfolio. Some repairs can be done in the field with ABZ service kits and support, which matters when the window to spray is short.
Kit or drone only?
The drone-only listing is the aircraft with its spray system and nothing else. The kit adds four batteries, the charger and the spreader. Unless you already own L30 power gear, take the kit.
Configured by the people
who fly them.
Drone Nerds is an authorized ABZ Innovation dealer. Enterprise specialists, agency and fleet purchasing, Part 137 guidance, and support from South Florida. Tell us the acreage and the crops; we'll spec the kit.
Authorized ABZ Innovation dealer
Factory-new US stock with full manufacturer warranty.
Regulatory guidance
Part 107, Part 137 and 44807 exemption support for operators over 55 lb.
Enterprise financing and purchasing
Approve financing, agency POs, and multi-unit pricing for ag operators.
Setup and support
Call 786-708-7807 and reach someone who has configured this system.
