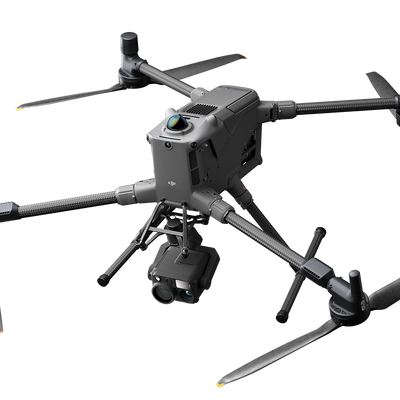

DJI Matrice 400, the enterprise flagship drone platform, boasts an impressive 59-minute flight time [1], a payload capacity of up to 6 kg [2], and integrated rotating LiDAR and mmWave radar for power-line-level obstacle sensing [3]. It also supports the O4 Enterprise Enhanced Video Transmission and Airborne Relay Video Transmission [4], ensuring safer handling and easier operations. Combining Smart Detection with visible and thermal imaging, AR projection, ship-based takeoff/landing, and advanced automation, Matrice 400 excels in emergency response, power inspections, mapping, and AEC.
Watch Video
Matrice 400's flight capabilities are outstanding, offering up to 59 minutes of forward flight time even with a payload, and up to 53 minutes of hovering duration [6]. These capabilities make it a reliable tool for long-duration and continuous operations such as search and rescue, firefighting, and large-scale mapping. It can also avoid large obstacles [3] like buildings and mountains at flight speeds of up to 25 m/s.
Keeps wildfire overwatch, wide-area SAR, and long-corridor mapping missions on a single battery set.
Slashes transit legs while the obstacle-sensing array actively scans for buildings, towers, and terrain.
Matrice 400’s strong payload capacity allows it to easily meet the demands of a wide range of applications. With a maximum payload capacity of 6 kg [2], Matrice 400 supports seamless switching between a single downward gimbal [8] and a dual downward gimbal [8]. It also features a third gimbal connector on the underside for additional flexibility. The aircraft is equipped with 4 external E-Port V2 ports [7], enabling simultaneous mounting of up to 7 payloads.
Depending on the task, Matrice 400 can be equipped with the Zenmuse H30 Series, L2, P1, S1 Spotlight, V1 Speaker, Manifold 3, or third-party payloads, thereby expanding its capabilities and unlocking the full potential of the DJI ecosystem.
Matrice 400 has a protection rating of IP55 [9], allowing it to operate reliably in challenging conditions including heavy dust or rain. It also maintains stable performance across temperatures from -20° to 50° C (-4° to 122° F), delivering consistent results in both hot and cold conditions.
The Matrice 400's advanced obstacle sensing system integrates rotating LiDAR, high-precision mmWave radar, and full-color low-light fisheye vision sensors [13], pushing detection capabilities to unprecedented levels. The system detects even small obstacles like high-voltage power lines across mountainous terrain — even in darkness [3]. It can penetrate rain and fog to sense its surroundings, providing enhanced safety in challenging weather conditions.
With Zenmuse H30 Series' visible and thermal imaging, Matrice 400 can detect vehicles, vessels, and subjects during search and rescue operations or routine flights. It also supports switching to other models, enabling the expansion of application scenarios. Additionally, it supports high-res grid photos and features powerful tracking capabilities.
Matrice 400 supports Real-Time Terrain Follow flight in any horizontal direction [15]. This feature can be enabled during both manual flight and automated flight routes, ensuring stable relative height to the ground. During large-scale search and rescue operations, the size of ground subjects can be kept consistent on the remote controller screen, reducing the need for frequent zoom adjustments and improving efficiency. During mapping missions, a consistent ground sampling distance (GSD) can be maintained to obtain high-precision mapping data.
To address the needs of offshore operations such as maritime patrol and wind turbine inspection, Matrice 400 is equipped with the capability to take off from and land on ships, supporting takeoff from stationary vessels and landing on moving vessels. By detecting landing point patterns on the deck, it can achieve safe and precise landings.
When equipped with the L2 LiDAR system, Matrice 400 can perform automated power transmission and distribution line following flights. It uses the rotating LiDAR to detect obstacles in real time and automatically bypasses crossing lines.
Matrice 400 supports the planning and execution of slope and geometric routes via DJI Pilot 2 or DJI FlightHub 2. Whether conducting detailed aerial surveys of building facades, slopes, or other inclined surfaces, or collecting mapping data of individual buildings or structures, Matrice 400 can quickly plan slope or geometric routes to efficiently acquire high-precision data.
* Always check and strictly abide by local laws and regulations before flying.
** All data on this page was collected with a production model of DJI Matrice 400 in a controlled test environment. Actual experience may vary depending on the environment, usage, and firmware version.
*** All videos and photos on this page were shot in strict compliance with local laws and regulations. Demos, including wildlife, were shot from a safe distance and are used for reference only. Please observe local laws and regulations and ensure the aircraft has obtained relevant certifications before flying.
**** Before use, Matrice 400 must be activated via the DJI Pilot 2 app.
1. Measured with the aircraft flying forward at a constant speed of 10 m/s in a windless environment at sea level, carrying only the H30T (total weight 10,670 g), and from 100% battery level until 0%. Data is for reference only. Actual experience may vary depending on the environment, usage, and firmware version.
2. The 6 kg payload is measured at the third gimbal connector under sea level conditions. Payload capacity decreases as altitude increases. For details, refer to the official user manual.
3. Power line obstacle sensing capability: When directly facing a transmission line (21.6 mm steel-core aluminum stranded wire), obstacle sensing is supported at speeds up to 25 m/s. When both transmission lines (21.6 mm steel-core aluminum stranded wire) and distribution lines (12 mm steel-core aluminum stranded wire) are present, obstacle sensing is supported at speeds up to 17 m/s. Obstacle sensing performance may vary depending on environmental conditions (such as cloud, fog, rain, or snow), as well as the material, position, and shape of the target object. Due to the limitations of the safety system, the aircraft cannot actively avoid fast-moving objects; please fly with caution in such environments. Refer to the user manual for more information. The mmWave radar function is unavailable in some countries/regions.
4. This feature is unavailable in countries or regions without 5GHz frequency support. Refer to local laws and regulations for more information.
5. Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.
6. Measured with the aircraft hovering in a windless environment at sea level, carrying only the H30T (total weight 10,670 g), and from 100% battery level until 0%. Data is for reference only. Actual usage time may vary depending on the flight mode, accessories, and environment.
7. The E4 port of E-Port V2 can be expanded into four payload ports via the E-Port Hub expansion plate. For more detailed information, visit https://developer.dji.com/payload-sdk to learn more.
8. Sold separately.
9. Please follow the requirements stated in the IP55 protection rating instructions. Measured in a controlled environment. The IP rating is not permanently effective and may decrease due to product wear and tear.
10. Measured with FCC compliance in an unobstructed environment with low interference at a flight altitude of approximately 120 m. Data is for reference only. During your flight, please pay attention to reminders in the app.
11. To use 4G Enhanced Transmission, the remote controller must be equipped with the DJI Cellular Dongle 2 (sold separately) or connected to the internet via Wi-Fi. This service is not available in some countries and regions. Please consult your local dealer for details.
12. There are certain blind areas of visual sensing and infrared sensing. Positioning and obstacle-sensing performance may be affected by the flight environment and obstacle characteristics. Please fly with caution.
13. When ambient light is below 12 lux, the visual sensor switches to black-and-white mode.
14. Zenmuse H30 Series required.
15. DJI FlightHub 2 required.
16. It is recommended to use the feature when the ship speed is below 10 knots and the wind speed is below 5 m/s; exercise caution in other environments. It is recommended to reserve a 3 m × 3 m takeoff and landing space on the deck. Standard landing point pattern files are available on the download page.
17. The following accessories are all compatible with Matrice 400.
18. Charging time is measured based on a 220-volt voltage.
19. Measured in a controlled environment. Results may vary depending on the environment, actual use, and firmware version.
20. Service offerings may vary by country or region. For details, please consult your local dealer. Free Repairs: Get free repairs within the coverage scope and amount; Coverage for Your Whole Fleet: Shared coverage can be extended to other DJI Enterprise devices bound to DJI Care Enterprise Plus within the same time period (30 calendar days) after the first activation and binding; Free Shipping: Available in regions covered by DJI Care Enterprise. Users are responsible for additional costs including logistics and customs duties incurred beyond the scope of coverage. The official extended warranty covers the following components: aircraft body, intelligent battery station, remote controller, single downward gimbal module, dual downward gimbal module, and third gimbal connector.
What is the ingress protection (IP) rating of DJI Matrice 400? Can I fly the drone in the rain?
It is IP55 rated. Do not fly in rain heavier than 100 mm / 24 h.
The IP rating is not permanently effective and may decrease due to product wear and tear.
What does the sensing system of DJI Matrice 400 consist of?
Omnidirectional binocular vision system
Downward-facing binocular vision system
LiDAR (horizontal rotating + upward)
Downward 3-D infrared range sensor
Six-directional mmWave radar
How is the obstacle-avoidance capability of DJI Matrice 400?
Power-line sensing:
Facing a main line (21.6 mm steel-core wire) — obstacle sensing supported up to 25 m/s.
Facing both main (21.6 mm) and distribution (12 mm) lines — obstacle sensing supported up to 17 m/s.
Performance varies with clouds, fog, rain, snow, object material, and shape. The aircraft cannot actively avoid fast-moving objects; fly with caution. The mmWave radar function is unavailable in some countries/regions.
How is the payload capacity of DJI Matrice 400?
The third gimbal connector supports up to 6 kg. When using the single downward gimbal, dual downward gimbals, and third connector together, the combined weight of non-DJI payloads must not exceed 6 kg. Contact the payload manufacturer for a test report to ensure safe flight under low-battery conditions.
Does DJI Matrice 400 use dual batteries or a single battery?
Single battery.
What is the certification level of DJI Matrice 400 in Europe?
DJI Matrice 400 is C3 certified by the European Union Aviation Safety Agency (EASA).
How do I activate DJI Matrice 400?
With DJI RC Plus 2 Enterprise Enhanced, connect to the internet via Wi-Fi or phone hotspot, then follow on-screen prompts to activate. After RC activation, connect the RC to the aircraft in DJI Pilot 2 and follow the prompts to activate the drone.
Without a 4 G dongle, how can I use Network RTK services with DJI Matrice 400?
Connect the remote controller to Wi-Fi and access Network RTK via the controller.
Are Network RTK services bound to the remote controller or the aircraft?
They are bound to the remote controller.
Does DJI Matrice 400 support quick start?
Yes. A built-in capacitor powers key components during battery swaps; if replacement finishes within 45 s, the aircraft resumes operation immediately.
Which payloads and accessories are compatible with DJI Matrice 400?
Gimbals: Zenmuse H30, H30T, L2, P1
Functional accessories: Zenmuse S1 Spotlight, Zenmuse V1 Speaker, Manifold 3, DJI RC Plus 2 sub-2 G SDR Module*, DJI Cellular Dongle 2
RTK: D-RTK 3 Multifunctional Station, D-RTK 2 Mobile Station
Ecosystem: DJI X-Port, E-Port V2 Dev & Coax Kits, SkyPort V3 Adapter & Coax Kits
* Operating frequencies vary by region; follow local regulations.
Can I install an upward gimbal connector on DJI Matrice 400?
No.
What mounting options does DJI Matrice 400 support?
Single downward, dual downward, and third gimbal connectors.
How many payload ports does DJI Matrice 400 have?
Four external E-Port V2 ports. The E4 port can expand to four via the E-Port HUB, allowing up to seven payloads.
Does DJI Matrice 400 have high-altitude propellers?
No; the standard 2510F propellers support flights up to 7 000 m ASL.
What types of propellers does DJI Matrice 400 support?
Standard 2510F propellers (included).
Why are the front and rear propellers positioned at different heights?
To improve propulsion efficiency and flight stability.
Can I replace the propellers myself?
Yes, but only in emergencies. After the mission, have your dealer verify proper installation.
What should I note when taking off and landing on a vessel?
1 Reserve a 3 m × 3 m flat deck area with clear overhead space and official landing-pattern marker.
2 Supports takeoff from static vessels and landings on vessels moving < 10 knots.
3 During auto-landing the aircraft may ascend if the pattern is lost; it re-enters landing when the pattern is reacquired.
4 Press C2 anytime to switch to manual mode.
5 Do not attach payloads to the aircraft underside.
Any precautions when using the top-mounted rotating LiDAR?
1 Always install the protective cover when not in use.
2 If the dome gets dirty, clean it with the supplied cloth for optimal performance.
Does DJI Matrice 400 support relay functionality? How many aircraft can be relayed at once?
Yes. One M400 can act as an onboard relay for one additional M400.
Feature unavailable where 5 GHz is disallowed; follow local regulations.
Does DJI Matrice 400 support D-RTK 3?
Yes.
Does DJI Matrice 400 support 4 G Enhanced Transmission?
Yes; the aircraft can carry two enhanced 4 G video-transmission modules.
Can I use DJI Matrice 400 accessories on a Matrice 350?
No—accessories are not cross-compatible.
What’s the difference between DJI RC Plus 2 Enterprise and Enterprise Enhanced?
The Enterprise Enhanced can mount the RC Plus 2 sub-2 G SDR Module, enabling sub-2 GHz bands.
Frequencies vary by region; follow local regulations.
What does the sub-2 G SDR Module do?
It unlocks supported sub-2 GHz bands, extending range and anti-interference resilience.
Frequencies vary by region; follow local regulations.
Does the RC Plus 2 Enterprise Enhanced support other DJI drones?
• Not compatible with Mavic 3 Enterprise, Matrice 3D Enterprise, or Matrice 350 RTK.
• Compatible with Matrice 4 series and Matrice 4D series (firmware 14.1+).
• None of these drones use sub-2 G bands.
Can I charge the RC with third-party USB-C chargers?
Yes. For best speed, use the BS100 USB-C port or any PD charger ≥ 65 W.
Do both RC versions support MSDK?
Yes.

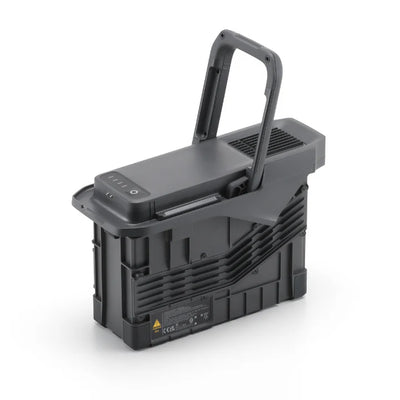

How do I recharge a TB100 battery?
Charge using the BS100 Battery Station.
How long to fully charge one TB100?
220 V AC: 45 min (Fast) / 110 min (Silent)
110 V AC: 70 min (Fast) / 110 min (Silent)
Measured at 25 °C.
Does the TB100 support self-heating?
Yes.
• In BS100: < 5 °C → auto-heat to > 20 °C, then charge.
• In aircraft: < 20 °C → auto-heat to 20 °C, then maintain.
Precautions for the TB100C Tethered Battery?
Use only with approved partner tether or dock systems; consult the ecosystem partner.
Can I lift the tethered battery by its cable?
No—the cable carries current; do not use it for lifting.
How is power-off endurance implemented?
Hot-swap the battery without pressing the power button (power-off endurance on). To shut down normally, short-press then long-press the button.
Any tips for inserting / removing the battery?
• Insert until the handle clicks fully into place.
• For WB37, press the unlock button before removal.
How do I confirm the battery is secure?
Push the handle down until a clear “click” is heard.
USB-C port function?
Charging and data transfer.
Max charging power of BS100?
TB100 interface output:
100–110 V AC input → 54.6 V DC, 21.7 A max
110–180 V AC → 54.6 V DC, 27 A max
180–240 V AC → 54.6 V DC, 40 A max
How do I upgrade the firmware of DJI Matrice 400?
1 DJI Assistant 2 (Enterprise) via computer.
2 DJI Pilot 2 app OTA.
3 Offline package on SD card, inserted into RC for update.
Which apps does DJI Matrice 400 support?
DJI Pilot 2 and other MSDK-based software.
Does DJI Matrice 400 support dual controls?
Yes.
Can FlightHub 2 remotely control the aircraft and payloads?
Yes—remote flight, gimbals, PSDK accessories, and route functions are supported.
Which SDKs does DJI Matrice 400 support?
Manifold 3, Payload SDK, Mobile SDK, and Cloud API.
For technical support, email dev@dji.com.
How can I get info or support for the Intelligent Algorithm Developer program?
Visit the DJI Developer webpage or email dev@dji.com.
Can I use DJI Matrice 400 across countries or regions?
No—confirm permitted regions with your dealer before purchase.
NOTE - NO BATTERIES INCLUDED MUST PURCHASE SEPARATELY
(1) Matrice 400 Aircraft (with propeller holder)
(1) Remote Controller — DJI RC Plus 2 (with sub-2 G SDR Module)
(1) WB37 Battery (for RC)
(1) Carrying Case
(2) Landing Gear
(2) Propeller Pair
(6) Propeller Washers and Screws
(1) Remote Controller Strap & Bracket
(1) USB-C ↔ USB-C Cable
(1) Power Cable
(4) Gimbal Damper
(1) Screws & Tools Set
(1) Cleaning Tools Set
(1) Rubber Port Covers & Screws Set
