Apex Pro Solution Suite Cleaning Van Skid - Skid Only
Talk to a Drone Nerds expert
This item is priced by quote. Tell us what you need and we'll have numbers back fast.
APEX Pro Every wash system. One van. One operator.

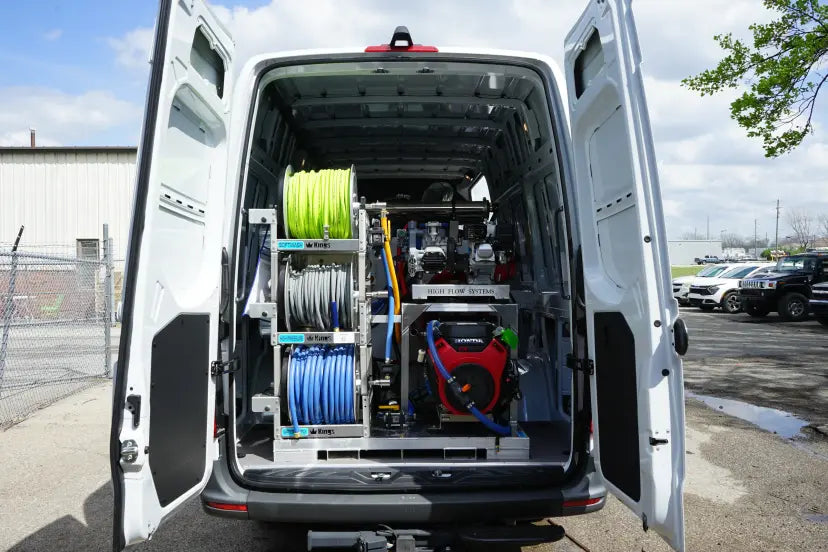

A fully integrated van-mounted skid for professional exterior cleaning. Pressure wash, soft wash, chemical dosing and 4-stage RO/DI pure water in one turnkey system, with RigLink remote start/stop and electric reels so a single operator runs the whole rig from the wand. This listing is the skid system only: add the ABZ C10 cleaning drone when you're ready. Van not included: the skid drops into your own high-top Transit, ProMaster or Sprinter.
Every wash system,
one skid.

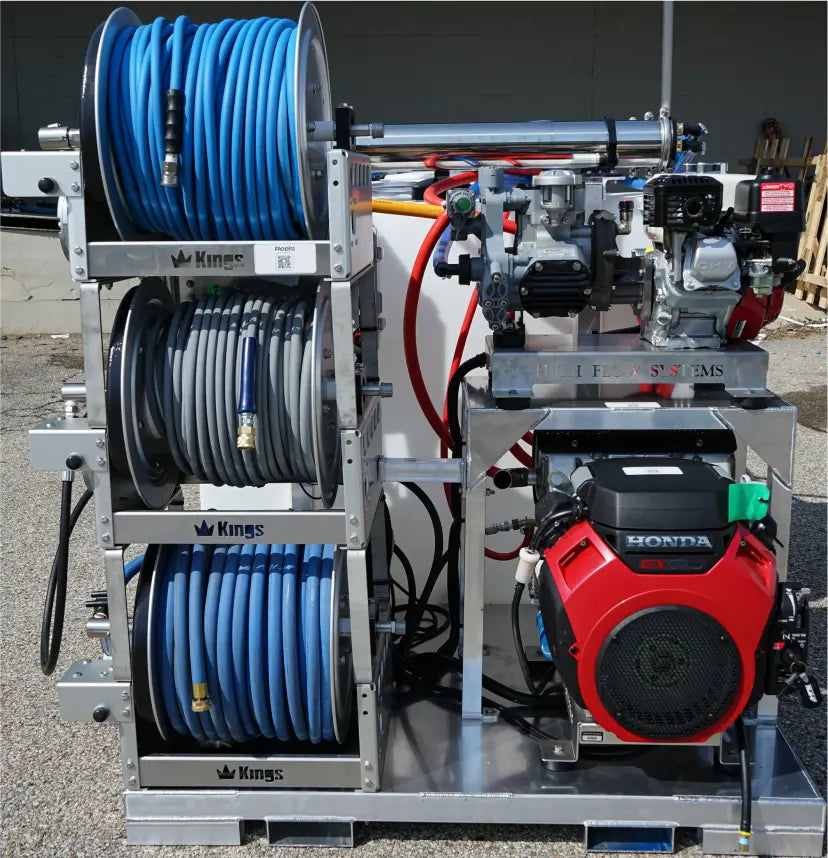

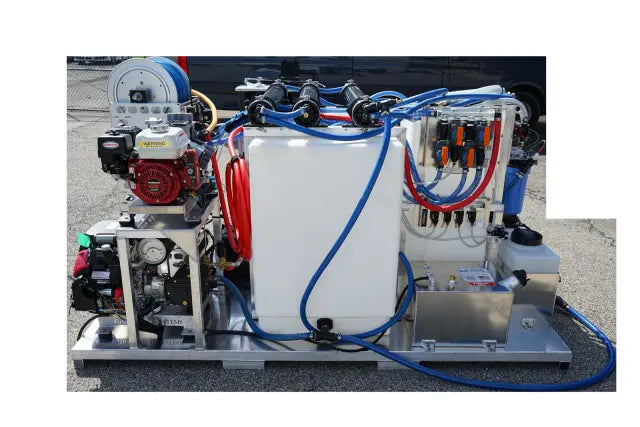

The APEX Pro Solution Suite consolidates every mobile-cleaning workflow into a single 96″ × 48″ × 60″ skid. Designed to drop into a high-top van, pre-plumbed and pre-wired.
-
Pressure wash8.0GPM3,500 PSI · Honda GX690 · RigLink remote start/stop
-
Soft wash11.5GPM300 PSI · Comet P40 · Honda GX160/GX200 · RigLink remote
-
Pure water4stageRO/DI · 3 RO membranes · 110V booster · dual TDS meter
-
Onboard tanks200galFresh water · 55 gal chemical · 2 × 7 gal soap
-
System 1

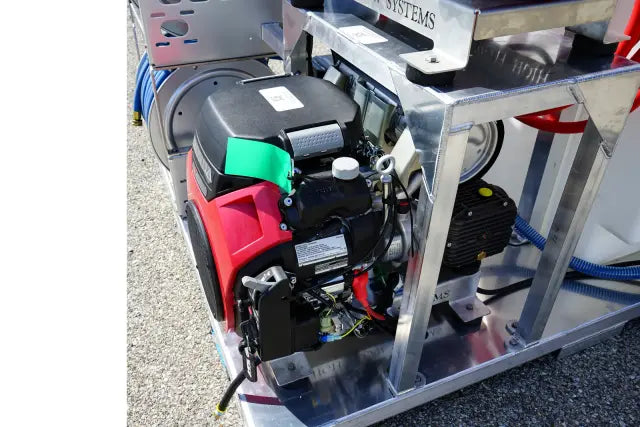

Pressure Wash
Enough flow and pressure for large-area cleaning and heavy soil removal. RigLink remote start/stop from anywhere on the job.
- Flow8.0 GPM
- Pressure3,500 PSI
- EngineHonda GX690
-

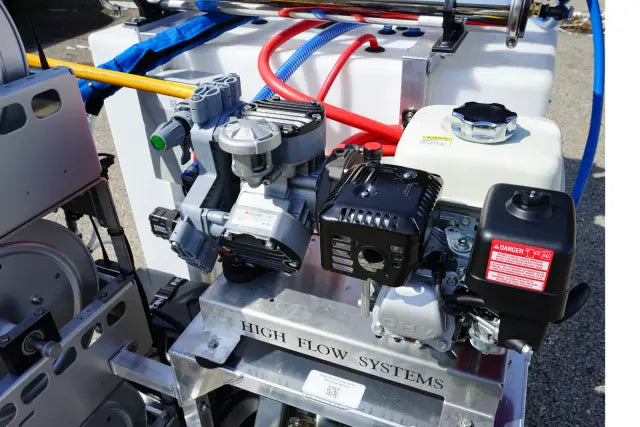

System 2
Soft Wash
The right ratio for house washing and delicate surfaces. Same RigLink remote workflow.
- Flow11.5 GPM
- Pressure300 PSI
- Pump / engineComet P40 · Honda GX160/GX200
Engineered for pros,
run by one operator.
RigLink turns every engine start, chemical inject and rinse into a button press from wherever you're working. Electric reels do the heavy lifting on hose management. A single operator runs the whole rig from the wand.
-
RigLink
Remote start / stop
Start and stop both engines and control the chemical system from anywhere on the job. No walking back to the rig, no idle time between passes.
-

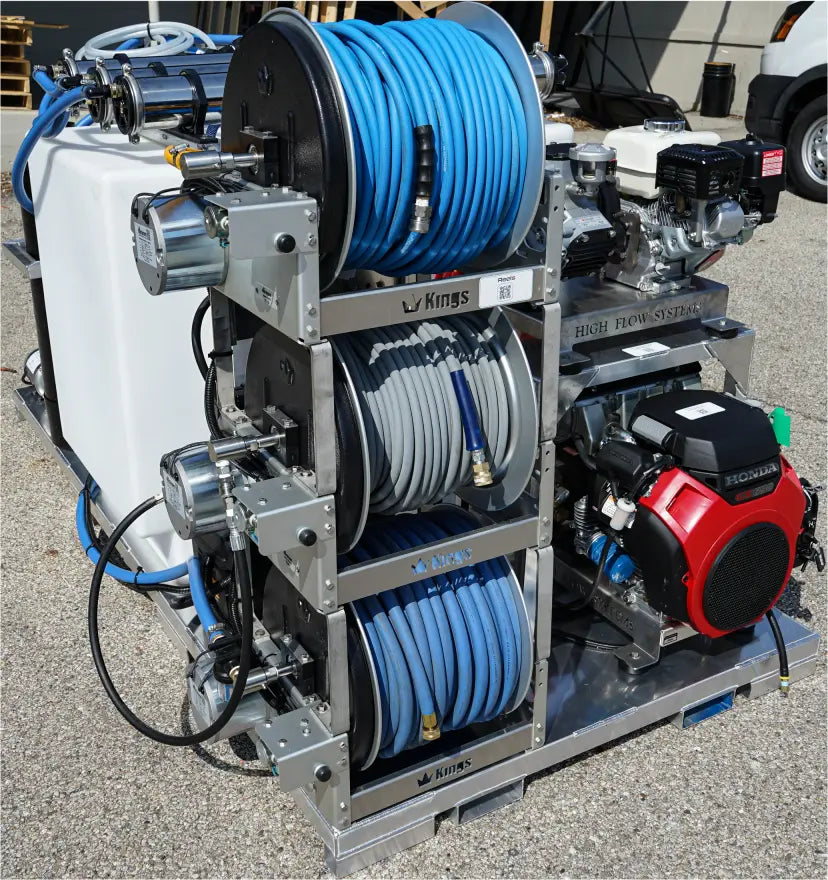

3 × 12″
Electric reels
Three heavy-duty 12″ electric reels for pressure, soft-wash and pure water lines. Powered deployment and retraction keeps the reels tangle-free.
-

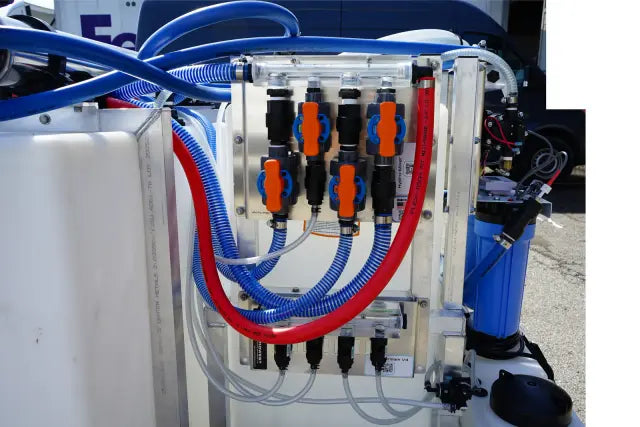

Dosing
ClearView V4 + Hydro-Mixer XL
RigLink remote injector, ClearView V4 for accurate ratio control, Hydro-Mixer XL for higher-volume mixing, plus remote rinse. Precise dosing on demand.
-
12V
Deep-cycle battery + onboard charger
Powers the electric reels, RigLink controls and RO/DI booster all day. Onboard charger with a dedicated fuse panel keeps it topped and protected.
Serious water purity,
serious capacity.
Window-cleaning-grade pure water from a 4-stage RO/DI system, and enough onboard storage to stay in the field all day without refills at the customer's spigot.
-

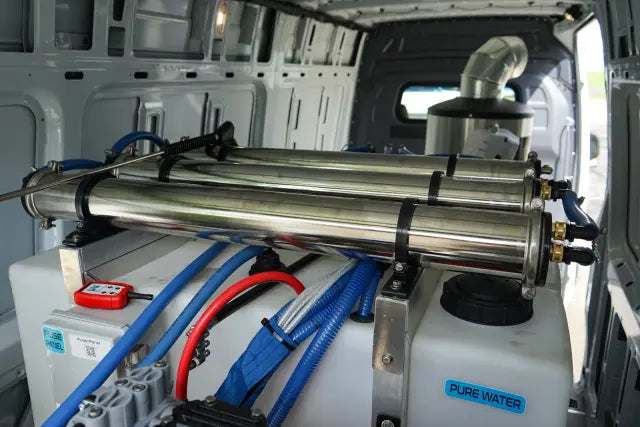

4-stage
RO/DI filtration
Sediment, carbon, reverse osmosis and DI remove almost every mineral and contaminant. Spot-free for windows and solar.
-

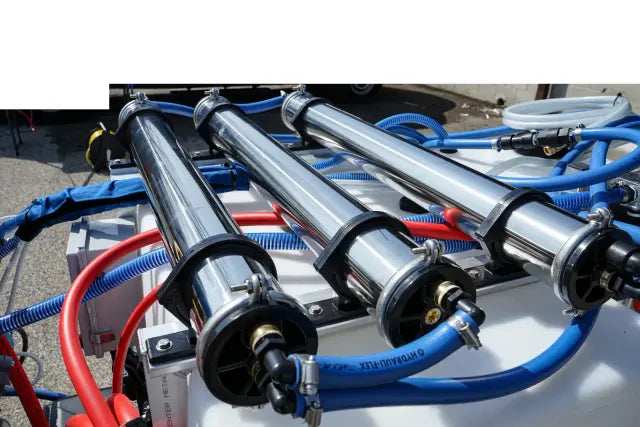

3 + 110V
RO membranes and booster
Three membranes in parallel out-produce single-membrane systems. The 110V booster holds pressure on long runs.
-
TDS in/out
Dual TDS meter
Live purity monitoring. Know when membranes need service before water quality drops.
-
200 gal
Fresh water tank
A full day of soft wash or window cleaning without refills.
-
55 + 2×7
Chemical and soap tanks
55 gal primary chemical plus two 7 gal soap tanks for multiple chemistries in one dispatch.

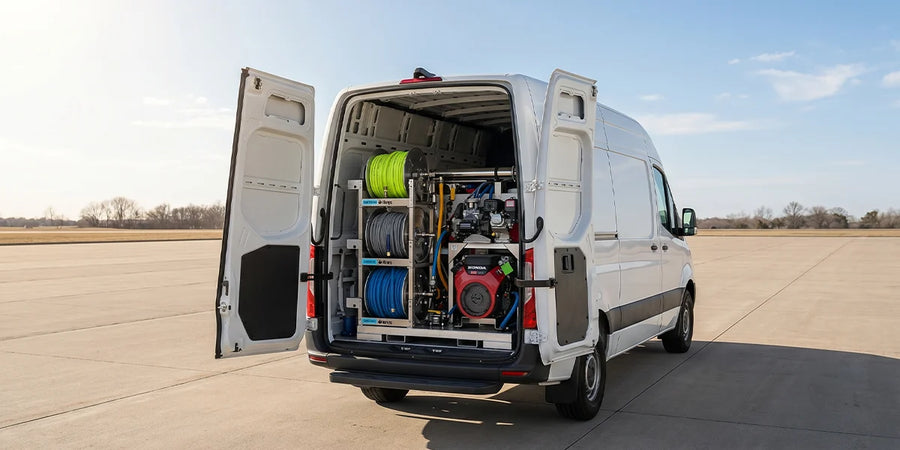

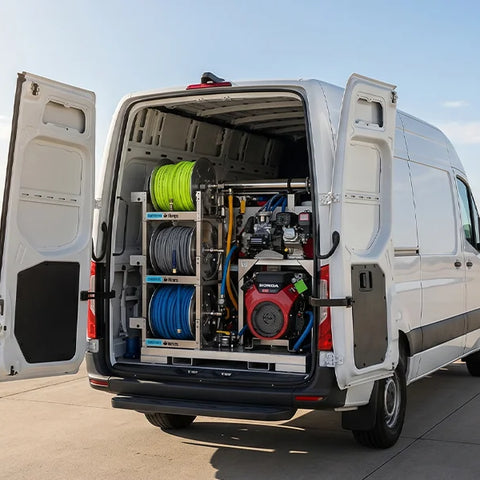

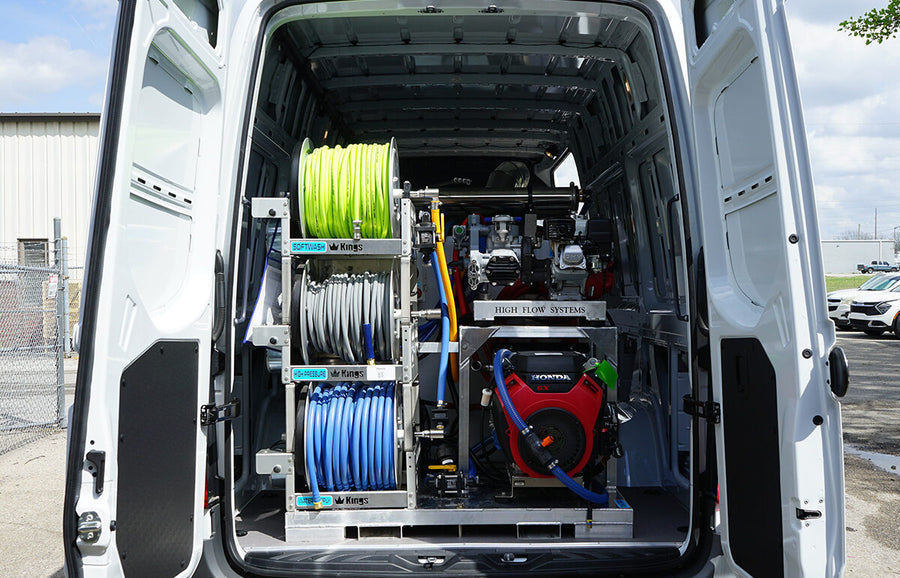

Van-ready.
No bespoke fitting.
Sized to drop directly into your own high-top van. The skid arrives pre-plumbed and pre-wired, ready to install. Vehicle not included.
-
Fits
Ford Transit
High-top
-
Fits
RAM ProMaster
High-top
-
Fits
Mercedes Sprinter
High-top
Skid only
or full suite?
Same skid, same systems. The suite adds the aircraft and the training to run it.
| Included | APEX Pro Skid Only | Full Suite with C10 → |
|---|---|---|
| APEX Pro van skid | Yes | Yes |
| ABZ C10 cleaning drone | Not included | Yes |
| C10 batteries and charger | Not included | 4 batteries + charger |
| Drone Wash training | Not included | 3-day intro |
| Van | Customer-supplied | Customer-supplied |
Rule of thumb: already own a C10? Skid only. Starting a drone-wash operation from scratch? The suite gets you the aircraft and the training in one order.
Want the drone bundled in? See the full APEX Pro Solution Suite →
Specifications
As configured in the APEX Pro Solution Suite.
- Pressure wash
- Flow8.0 GPM
- Pressure3,500 PSI
- EngineHonda GX690
- RemoteRigLink start/stop
- Soft wash
- Flow11.5 GPM
- Pressure300 PSI
- PumpComet P40
- EngineHonda GX160/GX200
- Pure water
- Filtration4-stage RO/DI
- RO membranes3
- Booster110V
- MonitoringDual TDS meter
- Chemical system
- InjectorRigLink remote
- Ratio controlClearView V4
- MixingHydro-Mixer XL
- RinseRemote rinse
- Skid and power
- Skid dimensions96″ × 48″ × 60″
- Van fitTransit, ProMaster, Sprinter (high-top)
- VehicleCustomer-supplied, not included
- Reels3 × 12″ electric
- PowerDeep-cycle battery, onboard charger, fuse panel
- Tanks
- Fresh water200 gal
- Chemical55 gal
- Soap2 × 7 gal
- SKUC10-APEX-PRO
What's included
The complete skid system, pre-plumbed and pre-wired. Van and aircraft are not included; see the full suite if you want the C10 bundled in.
- APEX Pro Van Skid Solution×1
- Pressure wash system, 8.0 GPM / 3,500 PSIincluded
- Soft wash system, 11.5 GPM / 300 PSIincluded
- 4-stage RO/DI pure water systemincluded
- Chemical dosing stack and RigLink remoteincluded
- 3 × 12″ electric reels, battery, charger, fuse panelincluded
Round out
the rig.
What our team adds to APEX Pro orders.
-
Add the aircraftABZ C10 Cleaning Drone Ready to Fly Kit
The drone this skid was built around, with charger and four batteries.
See the C10 kit -

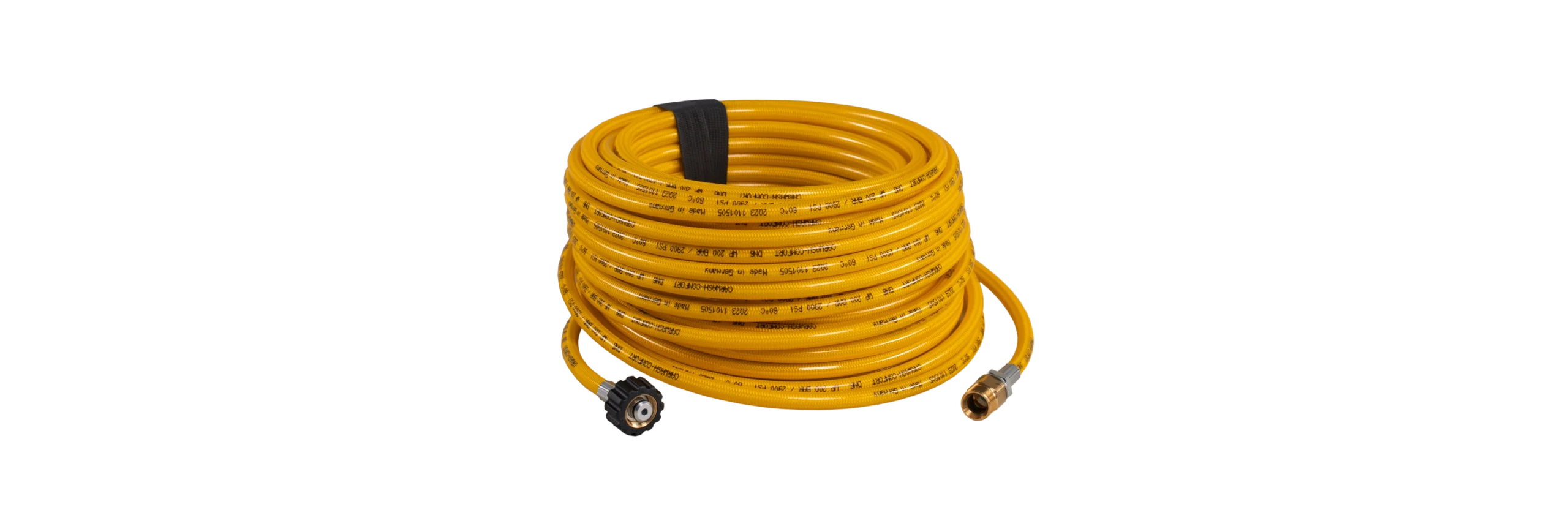

HoseABZ C10 190 ft Hose (60 m)
Full-height reach for high-rise facades and tall structures.
Shop 190 ft hose -
AircraftABZ Innovation C10 Cleaning Drone
Drone only, for operators who already have ABZ batteries and a charger.
See the C10 -
Questions we get
about the APEX Pro.
Straight answers from the team that configures and supports these rigs.
Is the van included?
No. This is the skid system only. You supply the van; the skid is sized to drop into a high-top Ford Transit, RAM ProMaster or Mercedes Sprinter.
Which vans does the skid fit?
High-top Ford Transit, RAM ProMaster and Mercedes Sprinter. The skid is 96″ × 48″ × 60″, pre-plumbed and pre-wired, and drops in without bespoke fitting.
Can one person actually run it?
That's the design goal. RigLink remote start/stop controls both engines and the chemical system from the wand, and the three 12″ electric reels handle hose deployment and retraction, so a single operator can run pressure wash, soft wash and pure water from wherever they're working.
What's the difference between the pressure wash and soft wash systems?
Pressure wash is 8.0 GPM at 3,500 PSI on a Honda GX690 for large areas and heavy soil. Soft wash is 11.5 GPM at 300 PSI through a Comet P40 pump on a Honda GX160/GX200 for house washing and delicate surfaces. Both are on RigLink remote.
How do I know the pure water is still pure?
The dual TDS meter shows TDS in and TDS out in real time, so you see membrane performance live and can schedule service before water quality drops.
Is the C10 drone included?
No. This listing is the skid system on its own. If you want the C10 aircraft, four batteries, charger and 3-day Drone Wash training bundled in, see the full APEX Pro Solution Suite with C10.
Why no price on the page?
The manufacturer doesn't allow this product's price to be advertised online. Dealers can log in to see pricing; everyone else, use the quote button and our team will have numbers back fast.
Configured by the people
who run them.
Drone Nerds is an authorized ABZ Innovation dealer. Enterprise specialists, fleet and agency purchasing, and support from South Florida. Tell us the van and the jobs you're bidding; we'll spec the rig.
Authorized ABZ Innovation dealer
Factory-new US stock with full manufacturer warranty.
Skid now, aircraft when ready
Add the C10 and training as a bundle or later; the skid is the same either way.
Enterprise financing and purchasing
Approve financing, agency POs, and multi-unit pricing for cleaning fleets.
Setup and support
Call 786-708-7807 and reach someone who has configured this system.
